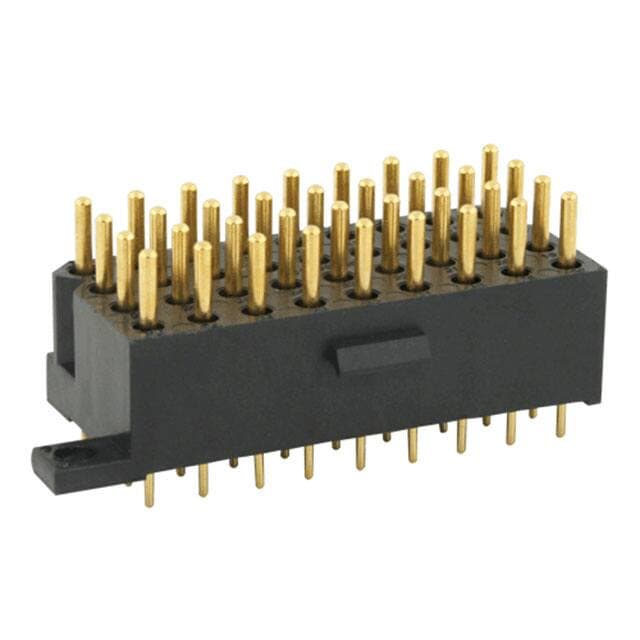

SOURIAU-SUNBANK SMS36GE4
Manufacturer No:
SMS36GE4
Manufacturer:
Package:
Description:
SMS Series 9-Row Header Solder Brass Bulk Through Hole Gold Polyester, Glass Filled 36-Position Board to Cable/Wire 0.526 13.35mm Height
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
SMS36GE4 information
SOURIAU-SUNBANK SMS36GE4 technical specifications, attributes, parameters and parts with similar specifications to SOURIAU-SUNBANK SMS36GE4.
- Type
- Parameter
- Factory Lead Time
- 14 Weeks
- Contact Material
- Brass
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Contact Shape
- Circular
- Insulation Material
- Polyester, Glass Filled
- Shell Material
- GLASS FILLED THERMOPLAST
- Housing Material
- Thermoplastic
- Operating Temperature
- -55°C~105°C
- Packaging
- Bulk
- Series
- SMS
- JESD-609 Code
- e4
- Feature
- Mounting Flange
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Solder
- Connector Type
- Header
- Number of Positions
- 36
- Number of Rows
- 9
- Gender
- Receptacle
- Fastening Type
- Locking Ramp
- Contact Finish - Mating
- Gold
- MIL Conformance
- NO
- DIN Conformance
- NO
- Filter Feature
- NO
- Contact Type
- Male Pin
- Mixed Contacts
- NO
- Option
- GENERAL PURPOSE
- Orientation
- Straight
- Ingress Protection
- IP40
- Depth
- 46.5mm
- Insulation Height
- 0.526 13.35mm
- Style
- Board to Cable/Wire
- Number of Positions Loaded
- All
- Pitch - Mating
- 0.200 5.08mm
- Insulation Color
- Black
- Row Spacing - Mating
- 0.200 (5.08mm)
- Contact Length - Post
- 0.138 3.50mm
- Shrouding
- Unshrouded
- Contact Length - Mating
- 0.280 7.11mm
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Empty Shell
- NO
- Overall Contact Length
- 0.939 23.85mm
- Max Current Rating
- 7.5A
- Length
- 34.9mm
- Contact Finish Thickness - Mating
- 16.0?in 0.41?m
- Material Flammability Rating
- UL94 V-0
Download datasheets and manufacturer documentation for SOURIAU-SUNBANK SMS36GE4.
datasheets:
SMS36GE4 Overview
Currently, it is packaged in Header.Mounting type Through Hole is assigned to the device.Packaging the product involves using a Bulk case.Among the products in the SMS Series, it is one of the most popular.A number of benefits can be derived from the Mounting Flange feature of this application.Through Hole is the mounting point for the part.-55°C~105°C Operating Temperature is used by the device.
SMS36GE4 Features
SMS series
SMS36GE4 Applications
There are a lot of SOURIAU-SUNBANK
SMS36GE4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
