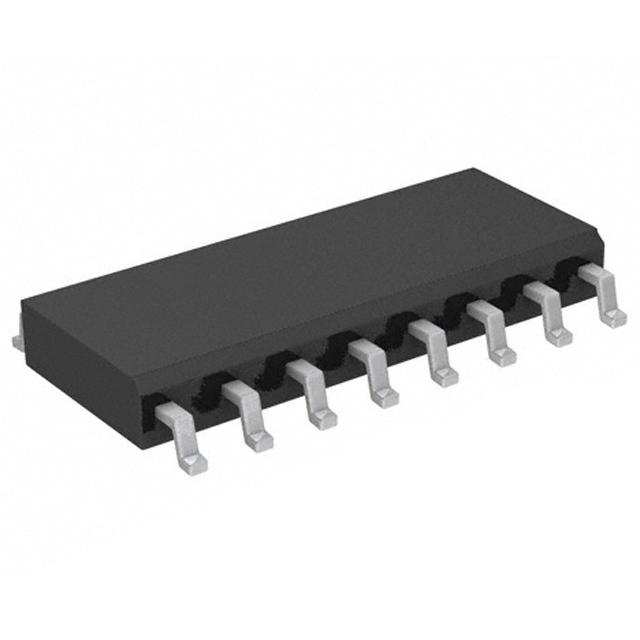

Renesas IDT2308-1DCI8

Manufacturer No:

IDT2308-1DCI8

Manufacturer:

Renesas

Package:

SOIC

Description:

3.3V 133.3MHz Clock Generators 16 Pins SOIC 16 Terminals Tape & Reel (TR)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT2308-1DCI8 information

Renesas IDT2308-1DCI8 technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT2308-1DCI8.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Packaging
Tape & Reel (TR)

Published
2009

JESD-609 Code
e0

Pbfree Code
no

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Clock Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
3.3V

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
20

Pin Count
16

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
3.3V

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
3V

Frequency (Max)
133.3MHz

Family
2308

Output Characteristics
3-STATE

Input
LVTTL

Logic IC Type
PLL BASED CLOCK DRIVER

Max I(ol)
0.008 A

Same Edge Skew-Max (tskwd)
0.2 ns

Number of True Outputs
8

Width
3.937mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT2308-1DCI8.

Datasheets:

integrateddevicetechnology-idt23081dci8-datasheets-3863.pdf

IDT2308-1DCI8 Overview

Clock ICs are packaged using the Tape & Reel (TR) method. In the SOIC package, there is an embedded clock generator. A maximum temperature of 240 can be sustained by this clock generator ic during reflowing. There are a total of 16 terminations in this file. A voltage of 3.3V should be applied to this electronic frequency generator. In this case, LVTTL is designed to be the input of the clock generator. To access the electronic component's full performance, 1 circuits are implemented. The frequency generator has a maximum frequency of 133.3MHz. There is a maximum voltage of 3.6V for this clock generator. Keeping the supply voltage for this frequency synthesizer above 3V is recommended for safety reasons. An IC that generates clocks specifically for microprocessors, this clock PLL is 16-bits in si16e. In addition to having an impressive low-temperature performance, this clock device can perform -40°C operations simultaneously. This RF synthesizer can last with attenuated performance at 85°C. A Clock Drivers clock generator is essentially what this device is. The timing skew of this frequency synthesizer is low at 0.2 nsmax. There are 8 pins configured for enabling high true outputs on this clock generator. 2308-family clock generators are similar. In PLL BASED CLOCK DRIVER logic circuits, this electronic frequency generator is used primarily as a clock component.

IDT2308-1DCI8 Features

Available in the SOIC
Supply voltage of 3.3V
8 true outputs

IDT2308-1DCI8 Applications

There are a lot of Integrated Device Technology (IDT)
IDT2308-1DCI8 Clock Generators applications.

Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
