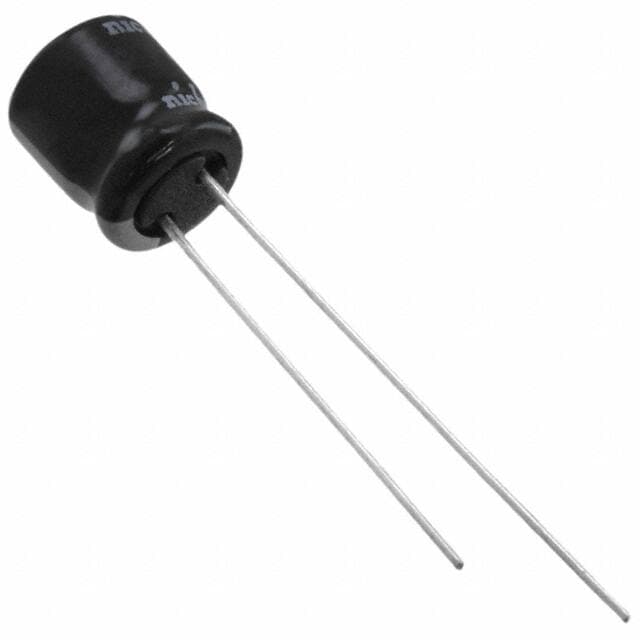

NICHICON USV1H220MFD

Manufacturer No:

USV1H220MFD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

USV 22?F Capacitor ±20% Bulk Through Hole 65mA 0.315Dia 8.00mm -40°C~105°C Polar 3.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

USV1H220MFD information

NICHICON USV1H220MFD technical specifications, attributes, parameters and parts with similar specifications to NICHICON USV1H220MFD.

Type
Parameter

Factory Lead Time
15 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
USV

Published
2009

Size / Dimension
0.315Dia 8.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

HTS Code
8532.22.00

Capacitance
22?F

Voltage - Rated DC
50V

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.138 3.50mm

Lead Diameter
500 ?m

Lifetime @ Temp
5000 Hrs @ 105°C

Leakage Current
11?A

Ripple Current
65mA

Polarization
Polar

Life (Hours)
5000 hours

Ripple Current @ Low Frequency
65mA @ 120Hz

Ripple Current @ High Frequency
97.5mA @ 10kHz

Dissipation Factor
0.12 %

Diameter
8mm

Height
7mm

Height Seated (Max)
0.315 8.00mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON USV1H220MFD.

USV1H220MFD Overview

Full charge results in a ripple current of 97.5mA @ 10kHz.The ripple current at the lowest charge is 65mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 0.315 8.00mm is recommended.Despite its 0.12 % dissipation factor, it still operates.Rated DC voltage is 50V for this capacitor.High efficiency requires an operating temperature of -40°C~105°C.
