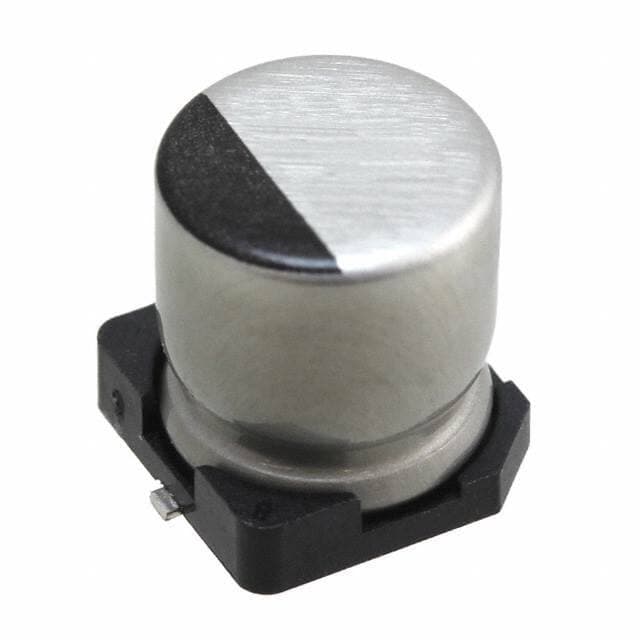

Nichicon UCW0J101MCL1GS
Nichicon UCW0J101MCL1GS

Nichicon UCW0J101MCL1GS

Manufacturer No:

UCW0J101MCL1GS

Manufacturer:

Nichicon

Package:

Radial, Can - SMD

Description:

UCW 100?F Capacitor ±20% Tape & Reel (TR) Surface Mount 140mA 0.248Dia 6.30mm -25°C~105°C Polar Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCW0J101MCL1GS information

Nichicon UCW0J101MCL1GS technical specifications, attributes, parameters and parts with similar specifications to Nichicon UCW0J101MCL1GS.

  • Type
  • Parameter
  • Factory Lead Time
  • 17 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Terminal Shape
  • FLAT
  • Dielectric Material
  • ALUMINUM (WET)
  • Surface Mount Land Size
  • 0.260Lx0.260W 6.60mmx6.60mm
  • Operating Temperature
  • -25°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • UCW
  • Published
  • 2009
  • Size / Dimension
  • 0.248Dia 6.30mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e6
  • Feature
  • General Purpose
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Bismuth (Sn/Bi)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Voltage - Rated DC
  • 6.3V
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Size Code
  • 2626
  • Voltage
  • 6.3V
  • Lifetime @ Temp
  • 7000 Hrs @ 105°C
  • Leakage Current
  • 6.3?A
  • Ripple Current
  • 140mA
  • Polarization
  • Polar
  • Life (Hours)
  • 7000 hours
  • Tan Delta
  • 0.32
  • Impedance
  • 1.1Ohm
  • Ripple Current @ Low Frequency
  • 70mA @ 120Hz
  • Ripple Current @ High Frequency
  • 140mA @ 100kHz
  • Diameter
  • 6.3mm
  • Height
  • 7mm
  • Height Seated (Max)
  • 0.276 7.00mm
  • Width
  • 6.6mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Nichicon UCW0J101MCL1GS.

Datasheets:

UCW0J101MCL1GS Overview


A full charge means 140mA @ 100kHz ripple current.During the lowest charge, ripple current is 70mA @ 120Hz.You should keep the seated height (Max) below 0.276 7.00mm.The capacitor operates from 6.3V DC voltage.When operating at -25°C~105°C, high efficiency can be achieved.

UCW0J101MCL1GS Features


the ripple current is 140mA @ 100kHz.
the ripple current is 70mA @ 120Hz.
voltage - Rated DC of 6.3V
an operating temperature of -25°C~105°C


UCW0J101MCL1GS Applications


There are a lot of Nichicon
UCW0J101MCL1GS applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
