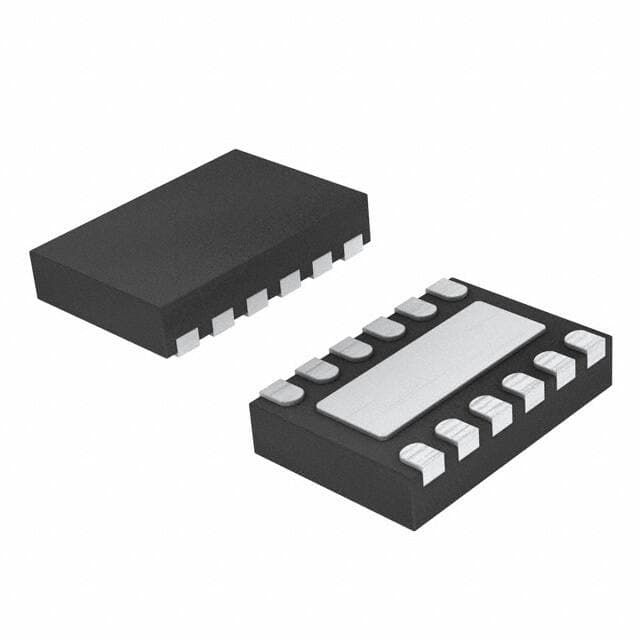

TI UCC28230DRNR

Manufacturer No:

UCC28230DRNR

Manufacturer:

Package:

12-UFDFN Exposed Pad

Description:

12 Terminals 7V~17V 12-Pin UCC28230 DC to DC converter IC SWITCHING CONTROLLER 4 Outputs 100kHz~550kHz Transistor Driver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCC28230DRNR information

TI UCC28230DRNR technical specifications, attributes, parameters and parts with similar specifications to TI UCC28230DRNR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
16 Weeks

Mounting Type
Surface Mount

Package / Case
12-UFDFN Exposed Pad

Surface Mount
YES

Number of Pins
12

Weight
16.300976mg

Operating Temperature
-55°C~125°C TJ

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

ECCN Code
EAR99

Terminal Finish
NICKEL PALLADIUM GOLD

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Supply Voltage
12V

Terminal Pitch
0.5mm

Base Part Number
UCC28230

Function
Step-Up/Step-Down

Number of Outputs
4

Output Type
Transistor Driver

Input Voltage-Nom
12V

Analog IC - Other Type
SWITCHING CONTROLLER

Output Configuration
Positive

Voltage - Supply (Vcc/Vdd)
7V~17V

Control Features
Frequency Control, Soft Start

Input Voltage (Min)
7V

Topology
Full-Bridge, Half-Bridge, Push-Pull

Control Mode
CURRENT-MODE

Output Current-Max
0.2A

Frequency - Switching
100kHz~550kHz

Control Technique
PULSE WIDTH MODULATION

Supply Current-Max (Isup)
2.5mA

Synchronous Rectifier
No

Max Frequency
1MHz

Max Duty Cycle
100 %

Duty Cycle
100 %

Output Phases
1

Height
600?m

Length
2mm

Width
3mm

Thickness
550?m

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TI UCC28230DRNR.

UCC28230DRNR Overview

The switching controller fits in the 12-UFDFN Exposed Pad package and is ideal for most applications. dc motor controller is suitable for 4 output generation. Packaged in solid enclosures, this pmic has a Tape & Reel (TR) rating. There are Transistor Driver dc switching's output (s) that it can handle. A 7V~17V voltage is supplied to the dc control and used for operating it. Suitable for work in a -55°C~125°C TJ dc switcher. With this switching controller, you can switch at 100kHz~550kHz. The Surface Mount makes it ideal for general dc dc regulator. Featured in the dcdc regulator is Frequency Control, Soft Start which allows efficient switching control. Thare switch converters are connected to an analog integrated circuit (IC) of type SWITCHING CONTROLLER. There are a terminal (s) on the switching converters that are designed at DUAL. 12 terminations with various dc switching's functions. PULSE WIDTH MODULATION is an example of one of the control techniques these dc dc converter ics adapt. The DC switcher's nominal voltage is 12V. Other relevant dc to dc converter ics will be returned if you search "UCC28230". Total pins of switching converter are 12. Particularly, switching converter is a type of Switching Regulator or Controllers. It is recommended to use 7V as the minimum input voltage of dc dc voltage regulator. A 3.3V voltage of DC regulator was detected in the test statistics. The duty cycle of the voltage regulator dc to dc can be set to 100 % on power-up or power-down to ensure reliability. There is a maximum frequency of 1MHz for this dc regulators. Whenever the current value is 0.2A, switching converter outputs the highest possible value. Voltage 12V must be supplied. In order to ensure proper operation, the controller should not receive more current than 2.5mA.

UCC28230DRNR Features

Transistor Driver Outputs
Switching Frequency: 100kHz~550kHz
Frequency Control, Soft Start
PULSE WIDTH MODULATION
Max Duty Cycle: 100 %

UCC28230DRNR Applications

There are a lot of Texas Instruments
UCC28230DRNR DC to DC converter applications.

CMM
Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
Industrial robots
Industrial controllers
Die casting equipment
Injection molding machinery
Various CNC machine tools
