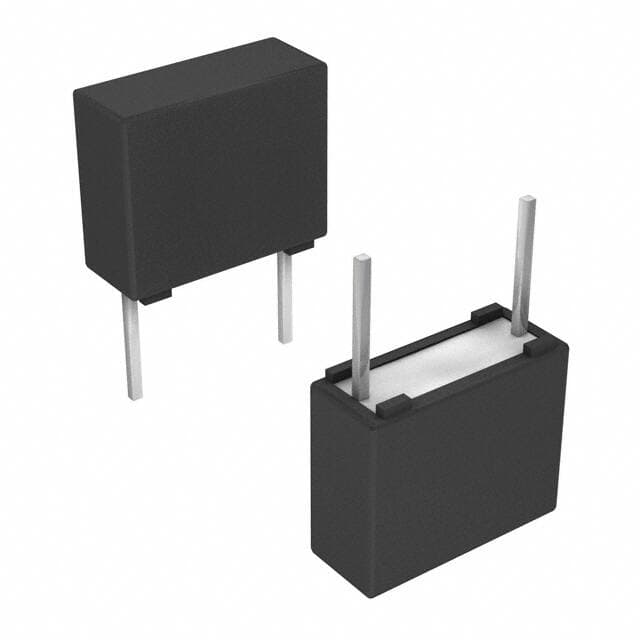

VISHAY BFC233820105
Manufacturer No:
BFC233820105
Manufacturer:
Package:
Radial
Description:
MKP338 2 1?F Film Capacitor ±20% Radial PC Pins 630V-DC 275V-AC Polypropylene (PP), Metallized Through Hole
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
BFC233820105 information
VISHAY BFC233820105 technical specifications, attributes, parameters and parts with similar specifications to VISHAY BFC233820105.
- Type
- Parameter
- Factory Lead Time
- 15 Weeks
- Contact Plating
- Tin
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- Radial
- Terminal Shape
- WIRE
- Number of Pins
- 2
- Dielectric Material
- Polypropylene (PP), Metallized
- Operating Temperature
- -55°C~110°C
- Packaging
- Bulk
- Series
- MKP338 2
- Published
- 2016
- Size / Dimension
- 1.024Lx0.394W 26.00mmx10.00mm
- Tolerance
- ±20%
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Termination
- PC Pins
- ECCN Code
- EAR99
- Applications
- EMI, RFI Suppression
- Additional Feature
- RATED AC VOLTAGE (V): 310
- Capacitance
- 1?F
- Depth
- 10mm
- Reference Standard
- IEC60384-14
- Voltage - Rated AC
- 275V
- Lead Pitch
- 22.5mm
- Capacitor Type
- FILM CAPACITOR
- Dielectric
- PP
- Lead Spacing
- 0.886 22.50mm
- Insulation Resistance
- 5GOhm
- Lead Diameter
- 800 ?m
- Rated (AC) Voltage (URac)
- 310V
- Height
- 22mm
- Height Seated (Max)
- 0.768 19.50mm
- REACH SVHC
- Unknown
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
- Ratings
- X2
Download datasheets and manufacturer documentation for VISHAY BFC233820105.
PCN Design/Specification:
RohsStatement:
BFC233820105 Overview
Despite the device's insulation resistance, there is 5GOhm.A 0.886 22.50mm lead spacing is used in this electrical device.For powering systems, an AC voltage of 310V is required.In a temperature range of -55°C~110°C, the device can be operated.
BFC233820105 Features
5GOhm insulation resistance
an internal rated (AC) voltage (URac) of 310V
BFC233820105 Applications
There are a lot of Vishay BC Components
BFC233820105 applications of film capacitors.
- Mobile communications
- Satellite TV
- Global positioning systems
- Filters
- VCO's
- Matching networks
- Snubbering
- Filtering
- IGBT
- Compact fluorescent lamps (CFL)
