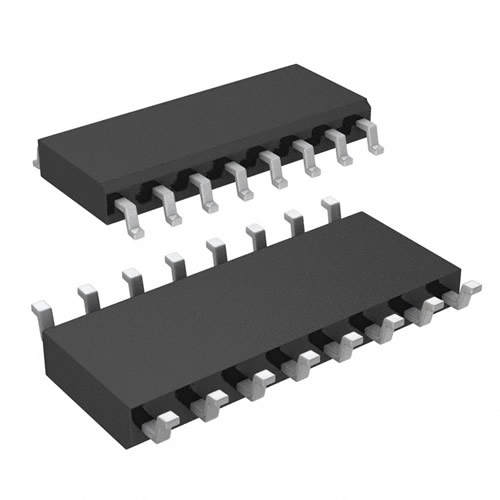

TI UC2861DWG4

Manufacturer No:

UC2861DWG4

Manufacturer:

Package:

SOIC

Description:

16 Terminations 16 Pin AC to DC power converter 2 Outputs 550kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UC2861DWG4 information

TI UC2861DWG4 technical specifications, attributes, parameters and parts with similar specifications to TI UC2861DWG4.

Type
Parameter

Package / Case
SOIC

Surface Mount
YES

Number of Pins
16

Weight
473.692182mg

JESD-609 Code
e4

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Switching Regulator or Controllers

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Frequency
450kHz

Pin Count
16

Number of Outputs
2

Input Voltage-Nom
12V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
22V

Analog IC - Other Type
SWITCHING CONTROLLER

Frequency (Max)
1MHz

Voltage - Output
1.7V

Input Voltage (Min)
11.5V

Topology
Push-Pull

Control Mode
VOLTAGE-MODE

Frequency - Switching
550kHz

Control Technique
RESONANT CONTROL

Rise Time
25ns

Fall Time (Typ)
25 ns

Max Duty Cycle
50 %

Duty Cycle (Max)
100 %

Length
10.3mm

Width
7.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI UC2861DWG4.

UC2861DWG4 Overview

This ac to dc converter is embedded in package SOIC .In this AC DC converter, the analog IC type is SWITCHING CONTROLLER .550kHz is the switching frequency.In total, there are 16 terminations.The ac/dc converter has a total of 16 pins.There are 16 pins on the ac-dc converter.A total of 2 outputs are to be processed.The ac to dc conversions are included in Switching Regulator or Controllers .A high efficiency is achieved when operating at a frequency of 450kHz .When the maximum 85°C is set, the AC to DC power converter runs steadily.A minimum working temperature of -40°C must be maintained by this isolated switch.As it has a 200mA output current, it offers a maximum degree of flexibility in design.Its output voltage is 1.7V .This Memory AC to DC converter operates at a maximum frequency of 1MHz .
