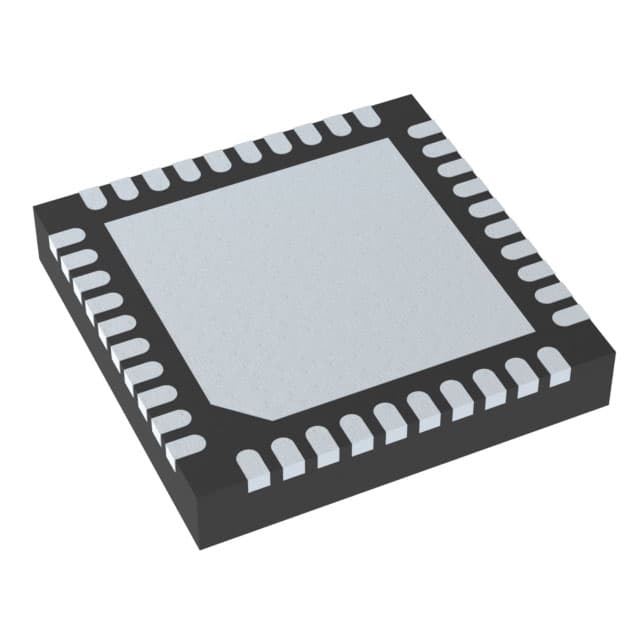

Microchip LE9540DUQC
Manufacturer No:
LE9540DUQC
Manufacturer:
Microchip
Package:
QFN
Description:
The Le9540 Dual Ringing SLIC device is a dual-channel device optimized to provide battery feed, ringing, and supervision on voice loops found in short-loop VoIP applications. This device is optimized with a serial bus to interface to the Broadcom BCM3383/84/85/90 cable SoCs and BCM6818/28/38 PON SoCs. The Le9540 device operates independently from a single, user-adjusted battery and a +3.3 V VCC per channel. Each channel provides forward and reverse battery feed, voice transmission, power ringing, an ultra low-power scan state, ground start (Tip open), and a disconnect state. A test load switch is also included to support integrated test algorithms.
Quantity:
In Stock :8915
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Thu, May 28 - Fri, May 29, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
LE9540DUQC Information
Microchip LE9540DUQC technical specifications, attributes, parameters and parts with similar specifications to Microchip LE9540DUQC.
- Type
- Parameter
- Application
- Broadband Gateway SLIC
- Series
- VE950
- Loop Length
- Short
- Battery Topology
- Tracking
- SOC Interface
- Serial
- Output Voltage (V) max
- 145
- Number of Ports
- 2
- Type
- Parameter
Download datasheets and manufacturer documentation for Microchip LE9540DUQC.
The Le9540 Dual Ringing SLIC device is a dual-channel device optimized to provide battery feed, ringing, and supervision on voice loops found in short-loop VoIP applications. This device is optimized with a serial bus to interface to the Broadcom BCM3383/84/85/90 cable SoCs and BCM6818/28/38 PON SoCs. The Le9540 device operates independently from a single, user-adjusted battery and a +3.3 V VCC per channel. Each channel provides forward and reverse battery feed, voice transmission, power ringing, an ultra low-power scan state, ground start (Tip open), and a disconnect state. A test load switch is also included to support integrated test algorithms.
- Dual Architecture
- Two fully independent integrated SLIC channel
- No impulse noise crosstalk in any operation states to the listening channel in forward or reverse active states
- Two Power Supplies
- Single user adjusted battery input per channel
- 3.3 V for VCC
- High Voltage Design
- Meets Comcast Ringing requirements without clipping distortion
- Robust solution with no damage during extended ringing cycles or switching the ringer on and off
- Allows use of 50 Ohm protection resistors and lower cost lower current rated protectors
- Up to -145 V ringing battery Le9540D
- Up to -100 V ringing battery Le9540C
- Channel Independent Eight Operating States
- Scan state for minimal power dissipation
- Active Forward Battery (Default Power Up State)
- Active Forward Battery ICV
- Active Reverse Battery
- Tip Open Ground Start
- Wink
- Ringing
- Disconnect (Default Power Up Mode)
- Per Channel Ringing Inputs for Optimized Interface to BCM SoC Devices
- Allows to accept driving signals from per channel voice outputs as well as from PWM outputs
- Ultra-Low On-Hook Power
- Loop Start, Ring Trip, and Ground Start Detections
- Loop closure detection with hysteresis to minimize dial pulse distortion
- Thermal Shutdown Protection with Hysteresis
- Test Load Switch
- Supports integrated test algorithms
