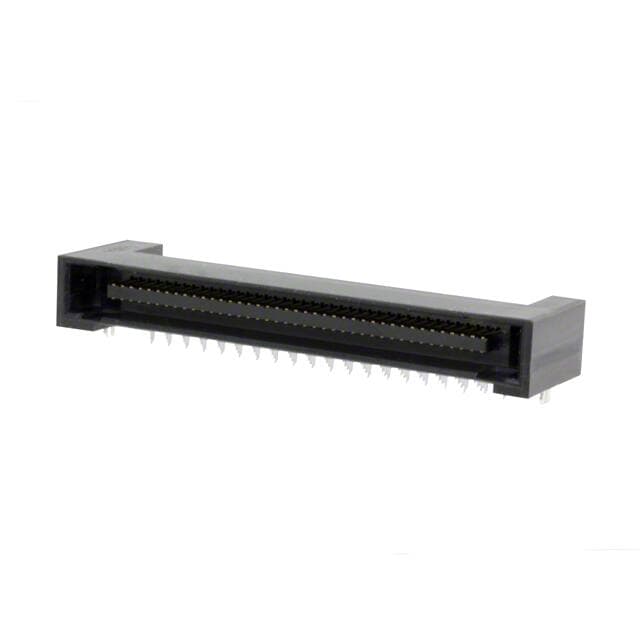

JAE TX25A-80P-LT-H1E

Manufacturer No:

TX25A-80P-LT-H1E

Manufacturer:

JAE

Package:

Description:

Plug, Center Strip Contacts Tray 2 Rows 0.050 1.27mm Through Hole, Right Angle 80 Positions TX25A Gold

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TX25A-80P-LT-H1E information

JAE TX25A-80P-LT-H1E technical specifications, attributes, parameters and parts with similar specifications to JAE TX25A-80P-LT-H1E.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Through Hole, Right Angle

Packaging
Tray

Series
TX25A

Published
2015

Feature
Board Lock

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Connector Type
Plug, Center Strip Contacts

Number of Positions
80

Number of Rows
2

Pitch
0.050 1.27mm

Contact Finish
Gold

Contact Finish Thickness
3.94?in 0.10?m

Height Above Board
0.354 9.00mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for JAE TX25A-80P-LT-H1E.

Datasheets:

jaeelectronics-tx25a80plth1e-datasheets-3245.pdf

jaeelectronics-tx25a80plth1e-datasheets-3246.pdf

TX25A-80P-LT-H1E Overview

A Plug, Center Strip Contacts package is included with it.Packaging is performed using a Tray case.Its mounting type is Through Hole, Right Angle.It is part of the TX25A Series of products.In operation, Board Lock may be maintained.

TX25A-80P-LT-H1E Features

TX25A series
Package / Case: Tray
Mounting Type:Through Hole, Right Angle

TX25A-80P-LT-H1E Applications

There are a lot of JAE Electronics
TX25A-80P-LT-H1E Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
