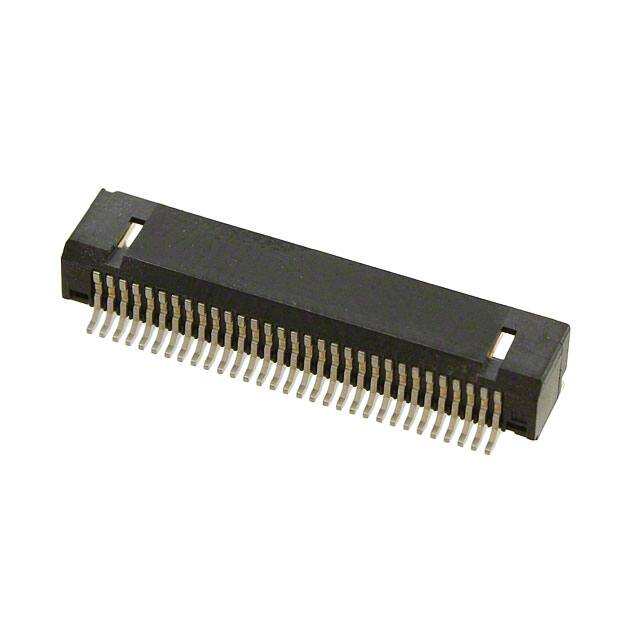

JAE FI-W31P-HFE
JAE FI-W31P-HFE

JAE FI-W31P-HFE

Manufacturer No:

FI-W31P-HFE

Manufacturer:

JAE

Package:

Description:

FI Series 2-Row Receptacle Solder Copper Alloy Tray Surface Mount, Right Angle Gold Polyphenylene Sulfide (PPS), Glass Filled 31-Position Board to Cable/Wire 0.146 3.70mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FI-W31P-HFE information

JAE FI-W31P-HFE technical specifications, attributes, parameters and parts with similar specifications to JAE FI-W31P-HFE.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold, Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Contact Shape
  • Square
  • Insulation Material
  • Polyphenylene Sulfide (PPS), Glass Filled
  • Housing Material
  • Polyphenylene
  • Operating Temperature
  • -40°C~80°C
  • Packaging
  • Tray
  • Series
  • FI
  • Published
  • 2004
  • Feature
  • Solder Retention
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Receptacle
  • Number of Positions
  • 31
  • Number of Rows
  • 2
  • Gender
  • Female
  • Voltage - Rated
  • 200V
  • Fastening Type
  • Friction Lock
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Male Pin
  • Orientation
  • Right Angle
  • Insulation Height
  • 0.146 3.70mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1A
  • Pitch - Mating
  • 0.049 1.25mm
  • Insulation Color
  • Black
  • Row Spacing - Mating
  • 0.055 (1.40mm)
  • Shrouding
  • Shrouded - 4 Wall
  • Lead Pitch
  • 1.25mm
  • Contact Finish - Post
  • Tin or Tin-Alloy
  • Contact Length - Mating
  • 0.094 2.40mm
  • Contact Resistance
  • 40mOhm
  • Insulation Resistance
  • 100MOhm
  • Material Flammability Rating
  • UL94 V-0
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for JAE FI-W31P-HFE.

Datasheets:

FI-W31P-HFE Overview


Packaging is Receptacle.Surface Mount, Right Angle is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the FI Series, it can be found in this category.With its Solder Retention feature, it is more powerful in many ways.In this case, Surface Mount mounts the part.The device is operating at -40°C~80°C Operating Temperature.

FI-W31P-HFE Features


FI series


FI-W31P-HFE Applications


There are a lot of JAE Electronics
FI-W31P-HFE Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
