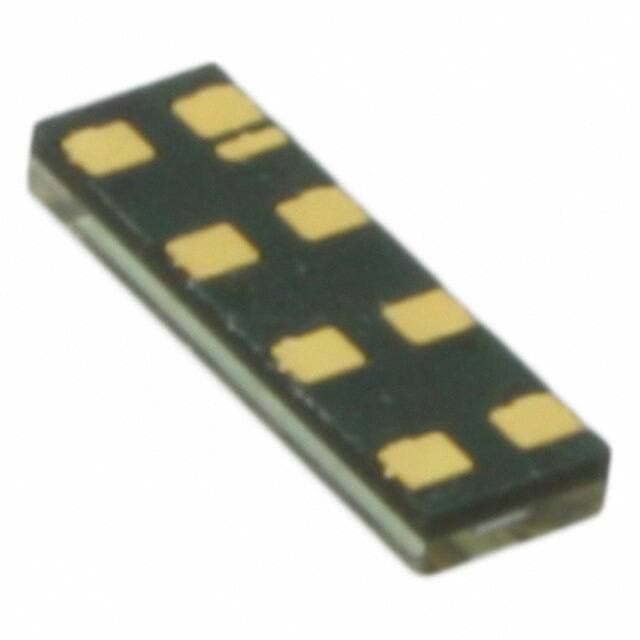

OSRAM TSL1401CL

Manufacturer No:

TSL1401CL

Manufacturer:

OSRAM

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TSL1401CL information

OSRAM TSL1401CL technical specifications, attributes, parameters and parts with similar specifications to OSRAM TSL1401CL.

Type
Parameter

Factory Lead Time
24 Weeks

Surface Mount
YES

Mounting Feature
SURFACE MOUNT

Number of Pins
8

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
5A (24 Hours)

Max Operating Temperature
85°C

Min Operating Temperature
-25°C

Subcategory
CCD Image Sensors

Output Type
Analog Voltage

Operating Supply Voltage
5V

Number of Elements
128

Power Supplies
5V

Termination Type
SOLDER

Operating Supply Current
2.8mA

Sensor Type
Linear Optical Array

Max Frequency
8MHz

Wavelength
1?m

Sensors/Transducers Type
IMAGE SENSOR,CCD

Max Supply Voltage (DC)
5V

Min Supply Voltage (DC)
3V

Output Range
1.60-2.40V

Pixel Size
55.5x63.5?m

Horizontal Pixel Count
128

Vertical Pixel
1

Spectral Response (nm)
300-1100

Height
1.2mm

Length
9.4mm

Width
3mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for OSRAM TSL1401CL.

Datasheets:

ams-tsl1401cl-datasheets-5278.pdf

TSL1401CL Description

The TSL1401CL linear sensor array is made up of a 128 1 array of photodiodes, related charge amplifier hardware, and an internal pixel data-hold function that offers start and stop periods for simultaneous integration for each pixel. Each of the 128 pixels in the array has a 3524.3 square micrometer photosensitive area. Pixels are spaced apart by 8 m. Internal control circuitry that just needs a serial-input (SI) signal and a clock simplifies operation.

TSL1401CL Features

128 x 1 Sensor-Element Organization

400 Dots-Per-Inch (DPI) Sensor Pitch

High Linearity and Uniformity

Rail-to-Rail Output Swing (AO)

TSL1401CL Applications

Temperature Measurement

Pressure Measurement

Flow Meters

Factory Automation and Process Control

User Guide
