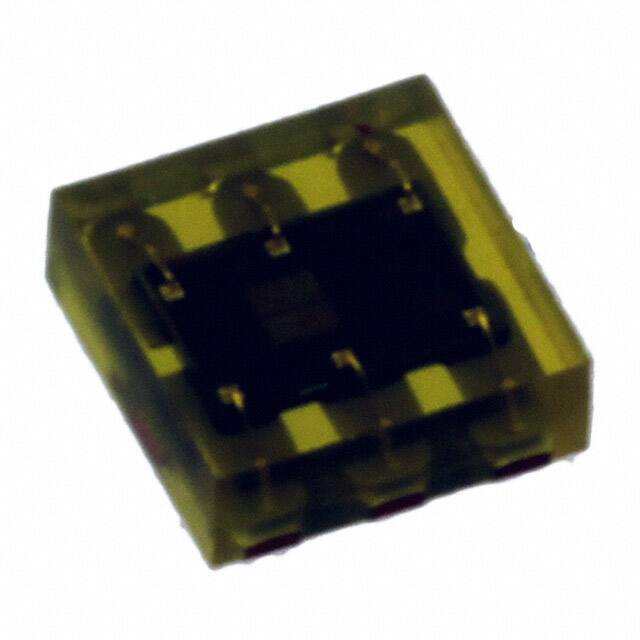

OSRAM TCS34007FNM

Manufacturer No:

TCS34007FNM

Manufacturer:

OSRAM

Package:

6-WDFN

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TCS34007FNM information

OSRAM TCS34007FNM technical specifications, attributes, parameters and parts with similar specifications to OSRAM TCS34007FNM.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
6-WDFN

Surface Mount
YES

Operating Temperature
-40°C~70°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
6

Type
Ambient

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Voltage - Supply
2.7V~3.6V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
10

JESD-30 Code
R-PDSO-N6

Output Type
I2C

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
2.7V

Wavelength
615nm 525nm 465nm 2700K

Height Seated (Max)
0.7mm

Width
2mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for OSRAM TCS34007FNM.

Datasheets:

ams-tcs34007fn-datasheets-7895.pdf

The TCS34007FNM is an integrated color light-to-digital converter from AMS Optical Sensors. It is designed to accurately measure ambient light, infrared (IR), and ultraviolet (UV) radiation levels. The device features an I2C interface, 8-pin SOIC package, and a wide dynamic range of up to 128,000 lux. It is ideal for applications such as display backlighting, ambient light sensing, and UV index measurement.

Features:
-Integrated color light-to-digital converter
-I2C interface
-8-pin SOIC package
-Wide dynamic range of up to 128,000 lux
-Low power consumption

Applications:
-Display backlighting
-Ambient light sensing
-UV index measurement
-Automotive lighting
-Industrial lighting
-Medical lighting
