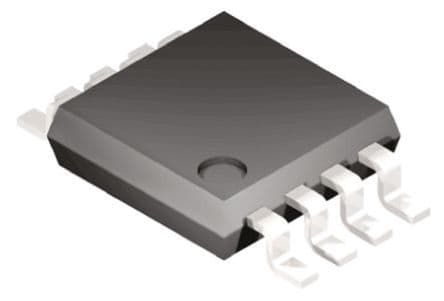

SKYWORKS TS9002IM8T

Manufacturer No:

TS9002IM8T

Manufacturer:

SKYWORKS

Package:

8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Description:

Surface Mount Tape & Reel (TR) 40mA mA 17000 ns ?s Linear Comparators 10pA pA 2012 2.6?A ?A 3.5mV mV Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TS9002IM8T information

SKYWORKS TS9002IM8T technical specifications, attributes, parameters and parts with similar specifications to SKYWORKS TS9002IM8T.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Number of Pins
8

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
NanoWatt Analog?

Published
2012

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Type
with Voltage Reference

Subcategory
Comparator

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
2

Supply Voltage
3V

Terminal Pitch
0.65mm

Base Part Number
TS9002

Output Type
CMOS, Complementary, TTL

Operating Supply Voltage
11V

Number of Elements
2

Nominal Supply Current
2.6?A

Propagation Delay
7 ?s

Quiescent Current
4?A

Response Time
17000 ns

Common Mode Rejection Ratio
80 dB

Voltage - Supply, Single/Dual (±)
2.5V~11V ±1.25V~5.5V

Input Offset Voltage (Vos)
3.5mV

Power Supply Rejection Ratio (PSRR)
80dB

Max Input Current
10pA

Dual Supply Voltage
5.5V

Input Bias Current
10pA

Current - Quiescent (Max)
4?A

Voltage - Input Offset (Max)
3.5mV @ 2.5V

Current - Input Bias (Max)
10pA @ 2.5V

Hysteresis
50mV

CMRR, PSRR (Typ)
80dB CMRR, 80dB PSRR

Height
950?m

Length
3.1mm

Width
3.1mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for SKYWORKS TS9002IM8T.

Datasheets:

siliconlabs-ts9002im8-datasheets-0218.pdf

siliconlabs-ts9002im8t-datasheets-2852.pdf

siliconlabs-ts9002im8t-datasheets-2853.pdf

TS9002IM8T Overview

For convenience, it is packaged in 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) .There is a CMOS, Complementary, TTL output type for this comparator.Electronic comparator is shipped by Tape & Reel (TR) .The comparator has a total of 8 terminals.The electrical component here belongs to the Comparator family.With a 3V voltage supply, the comparator can perform multiple demanding tasks.The type of the chip can be classified as with Voltage Reference .Electronic comparator consists of 2 elements in total.The recommended mounting method is Surface Mount .Electronic comparator is recommended that you set the operating temperature to -40°C~85°C in order to prevent malfunctions.The comparator has a pin count of 8 .You can find more pin-to-pin solutions by searching TS9002 .As a result, this comparator displays a quiescent current of 4?A .This component has a Surface Mount mount for mounting to PCBs or other boards.Normally, the nominal supply current should be 2.6?A when using the device.You can input a maximum current of 10pA into this device.A comparator part from the NanoWatt Analog? series is used in this part.Comparator electronics is necessary to have an operating supply voltage of 11V for normal operation.

TS9002IM8T Features

CMOS, Complementary, TTL output capability
with Voltage Reference IC
Employing 2 elements
Operates under -40°C~85°C
Quiescent Current: 4?A

TS9002IM8T Applications

There are a lot of Silicon Labs
TS9002IM8T linear comparators applications.
