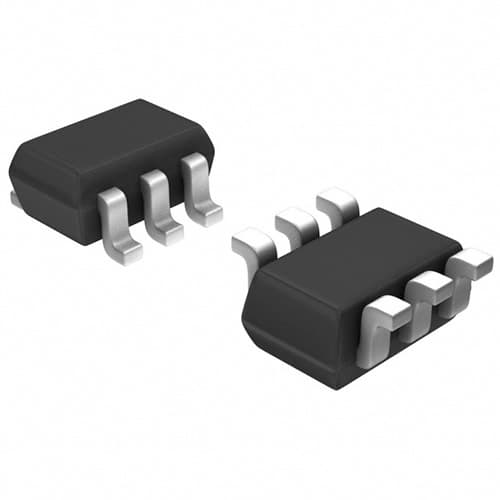

TI TS5A3159DCKRG4

Manufacturer No:

TS5A3159DCKRG4

Manufacturer:

Package:

SOT-70-6

Description:

DUAL Analog Switches BREAK-BEFORE-MAKE 6 Pins 1.8V SOT-70-6

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TS5A3159DCKRG4 information

TI TS5A3159DCKRG4 technical specifications, attributes, parameters and parts with similar specifications to TI TS5A3159DCKRG4.

Type
Parameter

Mount
Surface Mount

Package / Case
SOT-70-6

Number of Pins
6

Weight
2.494758mg

JESD-609 Code
e4

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Resistance
1.1Ohm

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
2-CHANNEL MUX/DEMUX

Subcategory
Multiplexer or Switches

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
1.8V

Pin Count
6

Temperature Grade
INDUSTRIAL

Number of Channels
1

Max Supply Voltage
5.5V

Min Supply Voltage
1.65V

Max Supply Current
100nA

Throw Configuration
SPDT

Turn On Delay Time
20 ns

Supply Type
Single

Bandwidth
100MHz

Turn-Off Delay Time
15 ns

Off-state Isolation-Nom
63 dB

On-state Resistance Match-Nom
0.7Ohm

Switching
BREAK-BEFORE-MAKE

Switch-on Time-Max
95ns

Switch-off Time-Max
70ns

Length
2mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI TS5A3159DCKRG4.

TS5A3159DCKRG4 Overview

As the electronic part is packed in SOT-70-6, international shipping is convenient. Total terminations are 6. The electronic part provides high-quality output because it has 1 channels. Powered by a 1.8V voltage supply, the electrical part should be switched on and run. The electrical component body receives 6 pins. An switch multiplexer with 1.1Ohm internal resistance has a value of 1.1Ohm. Datasheets for 6 pin functions are available upon request. The analogue multiplexer in this example is a typical Multiplexer or Switches. Multiplexers should not be powered above 5.5V in normal situations. The analog switch ic is of the Single supply type and is cost-effective. The lowest voltage the electronic part should receive is 1.65V. An operating current of 100nA would be sufficient for this switch device. When the digital multiplexer is charged above 100nA, damage can occur. There are 100MHz bandwidths for data transfer. Don't forget the additional features of this electronic part, such as: 2-CHANNEL MUX/DEMUX. Temperatures above 85°C degrees Celsius should not be operated by the multiplexer.

TS5A3159DCKRG4 Features

1 Channels
100nA Supply Current
Bandwidth: 100MHz
Additional Features: 2-CHANNEL MUX/DEMUX

TS5A3159DCKRG4 Applications

There are a lot of Texas Instruments
TS5A3159DCKRG4 Analog Switches & Multiplexers ICs applications.

Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
