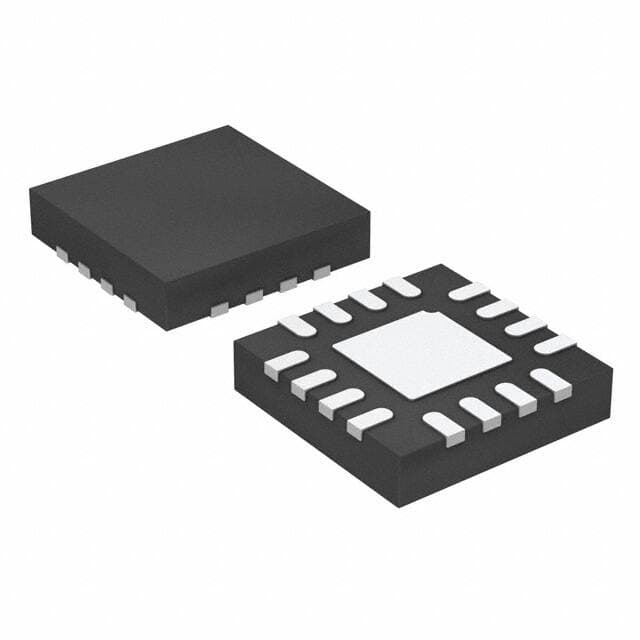

TI TPA6135A2RTET

Manufacturer No:

TPA6135A2RTET

Manufacturer:

Package:

16-WFQFN Exposed Pad

Description:

2.2mA mA 20 kHz kHz 25mW W Audio Amplifiers 800?m mm 3mm mm 2.567W W 16 pins 16-WFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPA6135A2RTET information

TI TPA6135A2RTET technical specifications, attributes, parameters and parts with similar specifications to TI TPA6135A2RTET.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 3 days ago)

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount

Package / Case
16-WFQFN Exposed Pad

Surface Mount
YES

Number of Pins
16

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
DirectPath?

JESD-609 Code
e4

Feature
Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

Termination
SMD/SMT

ECCN Code
EAR99

Type
Class AB

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Subcategory
Audio/Video Amplifiers

Max Power Dissipation
2.567W

Voltage - Supply
2.3V~5.5V

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Terminal Pitch
0.5mm

Base Part Number
TPA6135

Pin Count
16

Output Type
Headphones, 2-Channel (Stereo)

Operating Supply Voltage
5V

Number of Channels
2

Nominal Supply Current
2.2mA

Power Dissipation
2.567W

Output Power
25mW

Common Mode Rejection Ratio
100 dB

Supply Type
Single

Bandwidth
20 kHz

Gain Bandwidth Product
20 kHz

Voltage Gain
6.02dB

Power Supply Rejection Ratio (PSRR)
100dB

Gain
6.02 dB

Max Output Power
25mW

Max Output Power x Channels @ Load
25mW x 2 @ 16 ?

Harmonic Distortion
1%

Load Impedance
16Ohm

Height
800?m

Length
3mm

Width
3mm

Download datasheets and manufacturer documentation for TI TPA6135A2RTET.

Datasheets:

texasinstruments-tpa6135a2rtet-datasheets-5558.pdf

texasinstruments-tpa6135a2rtet-datasheets-5559.pdf

texasinstruments-tpa6135a2rtet-datasheets-5560.pdf

TPA6135A2RTET Overview

The package 16-WFQFN Exposed Pad contains it.Tape & Reel (TR) is the packaging method.16 terminations consist of terminating transmission lines with devices that match their characteristic impedance.Amp parts is configured wAmp partsh an output of Headphones, 2-Channel (Stereo) .This electrical device has the type Class AB .In a computer or other communication device, there are 16 pins, which are pronged contacts.There is an electronic part mounted in the way of Surface Mount .This electrical device is powered by 2.3V~5.5V volts.There are no channels on the device.When operating, Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown can be ensured.Amp parts is recommended that the operating temperature not exceed -40°C~85°C TA .In addition, it is equipped with 16 pins.Amp parts is included in Audio/Video Amplifiers .Amp parts is a member of the family TPA6135 .This electronic component's maximum output power is 25mW kWh per hour.Single is the type of supply for this electronic part.The electronic part is a member of the DirectPath? series.
