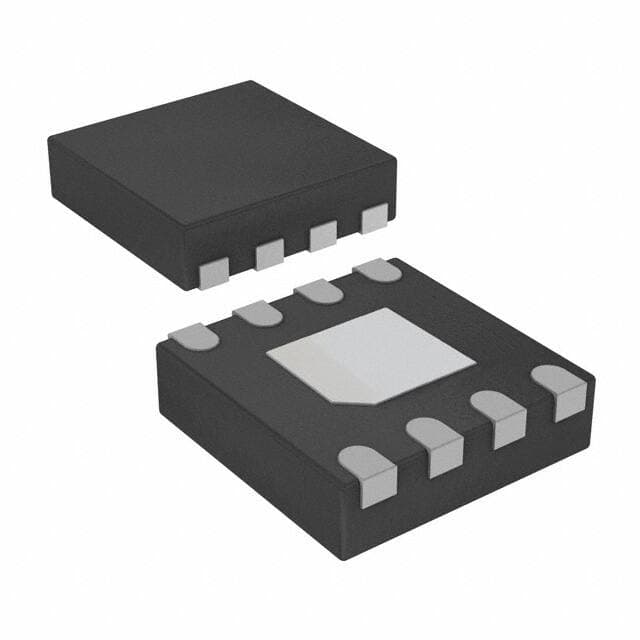

TS3002ITD822T Information

Touchstone Semiconductor TS3002ITD822T technical specifications, attributes, parameters and parts with similar specifications to Touchstone Semiconductor TS3002ITD822T.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-WFDFN Exposed Pad

Number of Pins
8

Supplier Device Package
8-TDFN (2x2)

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
NanoWatt Analog?

Published
2012

Part Status
Obsolete

Type
Parameter

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Type
Oscillator, Silicon

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Max Power Dissipation
1.951W

Voltage - Supply
0.9V~1.8V

Frequency
5.2kHz~290kHz

Operating Supply Voltage
1V

Number of Channels
1

Max Supply Voltage
1.8V

Download datasheets and manufacturer documentation for Touchstone Semiconductor TS3002ITD822T.

Datasheets:

touchstonesemiconductor-ts3002itd822t-datasheets-4839.pdf

TS3002ITD822T Overview

The timer clock is enclosed in a packaging that is attached to the 8-WFDFN Exposed Pad. This programmable timer has been set to 5.2kHz~290kHz frequencies.It is used to pack in Tape & Reel (TR) case. Mounting type Surface Mount is recommended.When a programmable timer is configured to operate at 0.9V~1.8V volts, the voltage that is supplied can be 0.9V~1.8V.The type of chips can be divided into Oscillator, Silicon. The operating temperature of this timer clock is -40°C~85°C. To mount this digital timer with Surface Mount. To keep the clock timer's supply current at 3.6?A. The operating supply voltage is rated at 3.6?A voltage. The NanoWatt Analog? relates to the digital timer's series. The minimum operating temperature of the chip must not be lower than -40°C. It's best to use the timer clock when the temperature is below 85°C. The timer clock contains 8 pins. The digital timer's operating supply voltage is rated 1V voltage. The digital timer has a frequency tolerance value of 2%. The minimum supply voltage of the chip must not be lower than 900mV. The supply voltage of this chip should not exceed 1.8V. The number of Timers/Counters on the device is 1.

TS3002ITD822T Features

Operate frequency at 5.2kHz~290kHz
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Current - Supply?3.6?A
Max Operating temperature at -40°C
1 Timers/Counters

TS3002ITD822T Applications

There are a lot of Touchstone Semiconductor
TS3002ITD822T Programmable Timers & Oscillators applications.

Electric Vehicles
Always On Systems
Clutch Actuator circuit
Car Door Handle circuit
Smart Key
Remote current sensor
Intruder Detection
Power-On Reset Timer
Long Time One Shot
?Heartbeat? Timers
