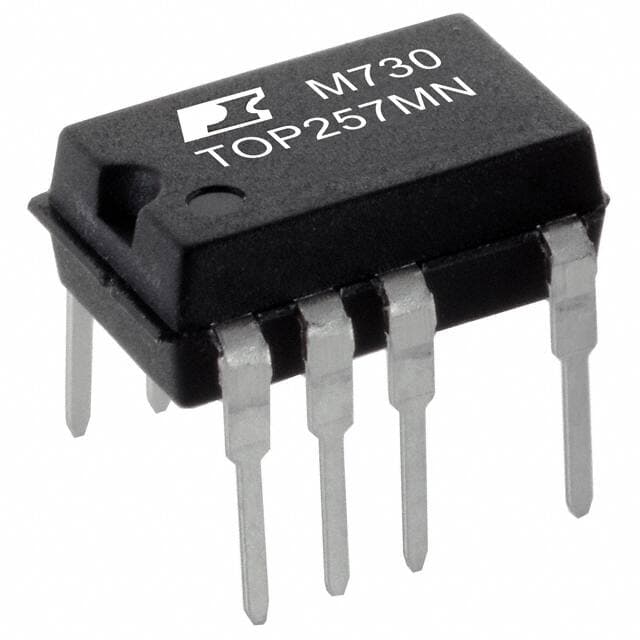

Power Integrations TOP257MN

Manufacturer No:

TOP257MN

Manufacturer:

Power Integrations

Package:

10-SDIP (0.300, 7.62mm), 9 Leads

Description:

9 Terminations 10 Pin AC to DC power converter TOPSwitch®-HX Series 1 Outputs Min 85V V Max 265V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TOP257MN information

Power Integrations TOP257MN technical specifications, attributes, parameters and parts with similar specifications to Power Integrations TOP257MN.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
10-SDIP (0.300, 7.62mm), 9 Leads

Number of Pins
10

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
TOPSwitch®-HX

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
9

Termination
Through Hole

Terminal Finish
Pure Matte Tin (Sn)

Power (Watts)
41W

Subcategory
Switching Regulator or Controllers

Power Rating
119W

Max Power Dissipation
119W

Technology
CMOS

Terminal Position
DUAL

Number of Functions
1

Frequency
66kHz

JESD-30 Code
R-PDIP-T9

Number of Outputs
1

Output Voltage
12V

Min Supply Voltage
36V

Analog IC - Other Type
ANALOG CIRCUIT

Nominal Supply Current
1.4mA

Output Power
78W

Topology
Flyback

Control Mode
VOLTAGE-MODE

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Max Duty Cycle
83 %

Max Supply Voltage (AC)
265V

Duty Cycle
78%

Output Isolation
Isolated

Voltage - Breakdown
700V

Max Input Voltage (AC)
265V

Min Supply Voltage (AC)
85V

Height
3.68mm

Length
9.83mm

Width
6.6mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Power Integrations TOP257MN.

TOP257MN Overview

In the package 10-SDIP (0.300, 7.62mm), 9 Leads , the ac to dc converter is embedded.The AC/DC power converter type is Tube .It is mounted in the way of Through Hole .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~150°C TJ °C.Analog ICs of type ANALOG CIRCUIT are used in this AC DC converter.As a result, it has had 9 terminations.A ac/dc converter with 10 pins is available.It are possible to mount thare ac dc converters by Through Hole .It belongs to the family of TOPSwitch®-HX manufacturers.There are 1 outputs to be processed.AC to DC converter is included in Switching Regulator or Controllers .There is 12V output voltage from this AC/DC converter.High efficiency can be achieved when AC to DC converters frequency is set to 66kHz .You can read the standard for REACH SVHC at: No SVHC .Coverters generate 78W in terms of output power.Across the converter, the minimum supply voltage is 85V .A maximum voltage of 265V can be applied across the converter.AC to DC power converters should be able to accept input voltages (AC) below 265V .The AC to DC power supply is capable of operating with a minimum supply voltage of 36V volts.

TOP257MN Features

Packaged with 10-SDIP (0.300, 7.62mm), 9 Leads
With 10 pins

TOP257MN Applications

There are a lot of Power Integrations
TOP257MN AC DC Converters applications.

Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
