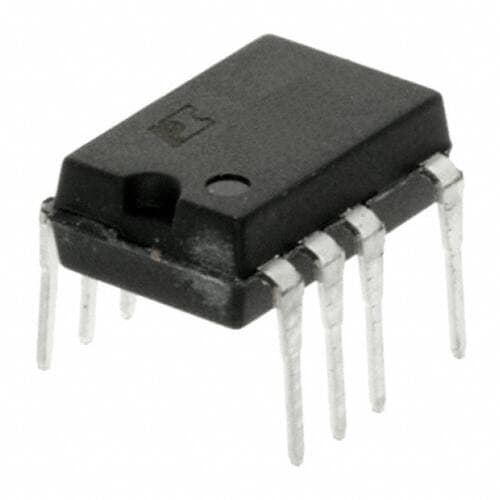

Power Integrations TOP253MN

Manufacturer No:

TOP253MN

Manufacturer:

Power Integrations

Package:

10-SDIP (0.300, 7.62mm), 9 Leads

Description:

9 Terminations 10 Pin AC to DC power converter TOPSwitch®-HX Series 1 Outputs Min 85V V Max 265V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TOP253MN information

Power Integrations TOP253MN technical specifications, attributes, parameters and parts with similar specifications to Power Integrations TOP253MN.

Type
Parameter

Factory Lead Time
4 Weeks

Mounting Type
Through Hole

Package / Case
10-SDIP (0.300, 7.62mm), 9 Leads

Surface Mount
NO

Number of Pins
10

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
TOPSwitch®-HX

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
9

Terminal Finish
Pure Matte Tin (Sn)

Subcategory
Switching Regulator or Controllers

Power Rating
25W

Max Power Dissipation
43W

Technology
CMOS

Terminal Position
DUAL

Number of Functions
1

Frequency
66kHz

JESD-30 Code
R-PDIP-T9

Number of Outputs
1

Output Voltage
700V

Analog IC - Other Type
ANALOG CIRCUIT

Operating Supply Current
1.3mA

Output Current
1.37A

Output Power
15W

Topology
Flyback

Min Input Voltage
85V

Control Mode
VOLTAGE-MODE

Max Input Voltage
265V

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Max Duty Cycle
83 %

Max Supply Voltage (AC)
265V

Duty Cycle
78%

Output Isolation
Isolated

Min Supply Voltage (AC)
85V

Length
9.575mm

Height Seated (Max)
5.08mm

Width
7.62mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Power Integrations TOP253MN.

TOP253MN Overview

In the 10-SDIP (0.300, 7.62mm), 9 Leads package, the ac to dc converter is embedded.In Tube AC/DC power converter, it is available.The AC/DC converter is mounted in the way of Through Hole .It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ in order to ensure its performance.An analog IC of type ANALOG CIRCUIT is employed in this AC DC converter.There are a total of 9 terminations.The ac/dc converter has 10 pins.A member of the TOPSwitch®-HX manufacturer family, it has the following characteristics.There are 1 outputs to be run.Switching Regulator or Controllers includes the ac to dc conversions.AC to DC converter is set to 1.37A for the output current.The output voltage of the AC/DC converter is 700V .A high efficiency can be achieved by operating at a frequency of 66kHz .REACH SVHC standard can be found at No SVHC .The AC to DC converter input voltage can be powered under 265V .In the AC to DC transformer of a coverter, the output power is 15W .If the input voltage is less than 85V V, the AC to DC inverter can be used.A voltage of 85V is the minimum supply voltage across the converter.There is a maximum supply voltage of 265V across the converter.

TOP253MN Features

Packaged with 10-SDIP (0.300, 7.62mm), 9 Leads
With 10 pins
Output Current at 1.37A

TOP253MN Applications

There are a lot of Power Integrations
TOP253MN AC DC Converters applications.

AC/DC Adaptors/Chargers for Cordless Phone
AC/DC Adaptors/Chargers for PDAs
AC/DC Adaptors/Chargers for E-books
Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
