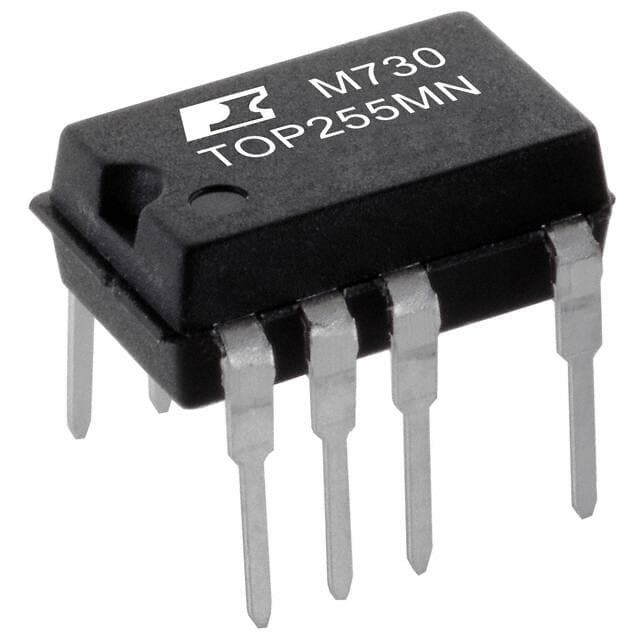

Power Integrations TOP255MN

Manufacturer No:

TOP255MN

Manufacturer:

Power Integrations

Package:

10-SDIP (0.300, 7.62mm), 9 Leads

Description:

9 Terminations 10 Pin AC to DC power converter TOPSwitch®-HX Series 1 Outputs

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TOP255MN information

Power Integrations TOP255MN technical specifications, attributes, parameters and parts with similar specifications to Power Integrations TOP255MN.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
10-SDIP (0.300, 7.62mm), 9 Leads

Number of Pins
10

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
TOPSwitch®-HX

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
9

Termination
Through Hole

Terminal Finish
Pure Matte Tin (Sn)

Subcategory
Switching Regulator or Controllers

Power Rating
81W

Max Power Dissipation
81W

Technology
CMOS

Terminal Position
DUAL

Number of Functions
1

Frequency
66kHz

JESD-30 Code
R-PDIP-T9

Number of Outputs
1

Output Voltage
700V

Max Output Current
2.72A

Min Supply Voltage
-300mV

Analog IC - Other Type
ANALOG CIRCUIT

Output Current
2.72A

Output Power
30W

Topology
Flyback

Control Mode
VOLTAGE-MODE

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Max Duty Cycle
78 %

Duty Cycle
78%

Output Isolation
Isolated

Voltage - Breakdown
700V

Max Input Voltage (AC)
265V

Height
3.68mm

Length
9.83mm

Width
6.6mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Power Integrations TOP255MN.

TOP255MN Overview

There is a ac to dc converter embedded in package 10-SDIP (0.300, 7.62mm), 9 Leads .The ac dc converter is available in Tube case.In this case, the AC/DC converter is mounted in the way of Through Hole .This ac dc converter should be operated at a temperature of -40°C~150°C TJ °C so that it can deliver its performance.In this AC DC converter, an analog integrated circuit (IC) of type ANALOG CIRCUIT is employed.There are a total of 9 terminations in it.It contains 10 pins.Through Hole is a suitable mounting point for the ac dc converters.It belongs to a manufacturer family of TOPSwitch®-HX .AC to DC converter is necessary to run 1 outputs.AC to DC converter is contained in Switching Regulator or Controllers .We are setting the output current to 2.72A .The voltage output by this AC/DC converter is 700V .This power AC DC is capable of reaching high efficiencies when operating at a frequency of 66kHz .You may read the REACH SVHC standard at No SVHC .30W is the output power of a coverter.An input voltage (AC) should be applied under 265V to the AC to DC power converter.A minimum supply voltage of -300mV is sufficient for it to operate.

TOP255MN Features

Packaged with 10-SDIP (0.300, 7.62mm), 9 Leads
With 10 pins
Output Current at 2.72A

TOP255MN Applications

There are a lot of Power Integrations
TOP255MN AC DC Converters applications.

DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
Networking
Battery Chargers
