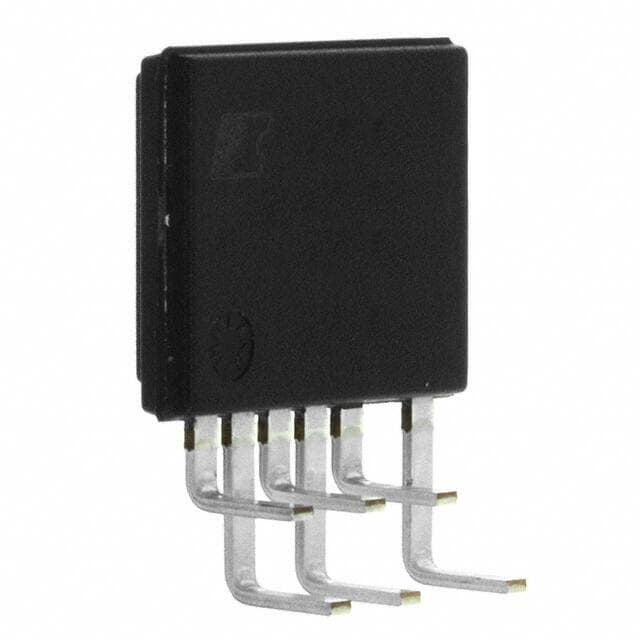

Power Integrations TOP255LN

Manufacturer No:

TOP255LN

Manufacturer:

Power Integrations

Package:

7-SSIP, 6 Leads, Exposed Pad, Formed Leads

Description:

6 Terminations 6 Pin AC to DC power converter TOPSwitch®-HX Series 66kHz 132kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TOP255LN information

Power Integrations TOP255LN technical specifications, attributes, parameters and parts with similar specifications to Power Integrations TOP255LN.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Through Hole

Package / Case
7-SSIP, 6 Leads, Exposed Pad, Formed Leads

Surface Mount
NO

Number of Pins
6

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
TOPSwitch®-HX

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

Terminal Finish
Pure Matte Tin (Sn)

HTS Code
8542.39.00.01

Subcategory
Switching Regulator or Controllers

Max Power Dissipation
81W

Technology
CMOS

Analog IC - Other Type
ANALOG CIRCUIT

Topology
Flyback

Control Mode
VOLTAGE-MODE

Frequency - Switching
66kHz 132kHz

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Duty Cycle
78%

Output Isolation
Isolated

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Power Integrations TOP255LN.

TOP255LN Overview

In the package 7-SSIP, 6 Leads, Exposed Pad, Formed Leads , the ac to dc converter is embedded.The AC/DC power converter type is Tube .It is mounted in the way of Through Hole .For the ac dc converter to perform at its best, it should be operated at a temperature of -40°C~150°C TJ °C.Analog ICs of type ANALOG CIRCUIT are used in this AC DC converter.In this AC to DC transformer, the switching frequency is 66kHz 132kHz .As a result, it has had 6 terminations.A ac/dc converter with 6 pins is available.It belongs to the family of TOPSwitch®-HX manufacturers.AC to DC converter is included in Switching Regulator or Controllers .

TOP255LN Features

Packaged with 7-SSIP, 6 Leads, Exposed Pad, Formed Leads
Switching Frequency at 66kHz 132kHz
With 6 pins

TOP255LN Applications

There are a lot of Power Integrations
TOP255LN AC DC Converters applications.

Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
