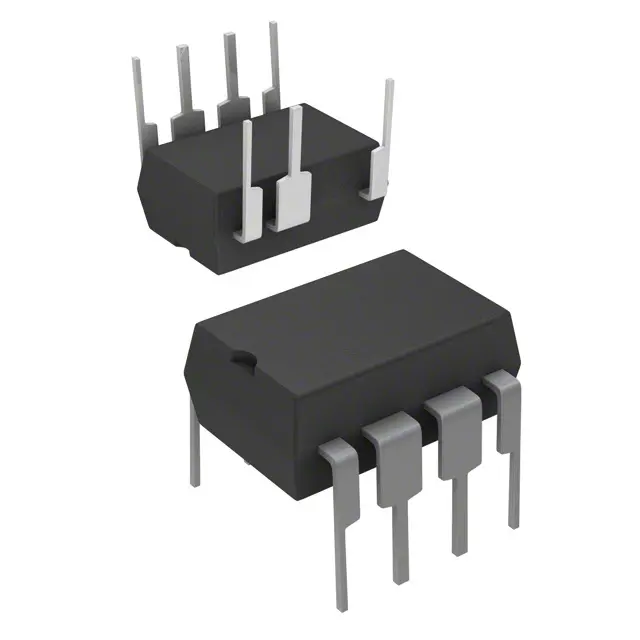

Power Integrations TOP246PN

Manufacturer No:

TOP246PN

Manufacturer:

Power Integrations

Package:

8-DIP (0.300, 7.62mm), 7 Leads

Description:

7 Terminations 7 Pin AC to DC power converter TOPSwitch®-GX Series 1 Outputs 66kHz~132kHz Min 85V V Max 265V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TOP246PN information

Power Integrations TOP246PN technical specifications, attributes, parameters and parts with similar specifications to Power Integrations TOP246PN.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Through Hole

Package / Case
8-DIP (0.300, 7.62mm), 7 Leads

Surface Mount
NO

Number of Pins
7

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
TOPSwitch®-GX

Published
2005

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
7

ECCN Code
EAR99

Terminal Finish
PURE MATTE TIN

Subcategory
Switching Regulator or Controllers

Power Rating
26W

Max Power Dissipation
34W

Technology
CMOS

Terminal Position
DUAL

Number of Functions
1

Terminal Pitch
2.54mm

Pin Count
8

Output Voltage
12V

Output Type
Adjustable

Analog IC - Other Type
SWITCHING REGULATOR

Nominal Supply Current
2.2mA

Control Features
Frequency Control

Topology
Flyback

Min Input Voltage
85V

Control Mode
VOLTAGE-MODE

Output Current-Max
4.32A

Frequency - Switching
66kHz~132kHz

Max Input Voltage
265V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
SINGLE

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Max Duty Cycle
83 %

Max Supply Voltage (AC)
265V

Duty Cycle
66.5%

Output Isolation
Isolated

Voltage - Breakdown
700V

Min Input Voltage (AC)
85V

Max Input Voltage (AC)
265V

Min Supply Voltage (AC)
85V

Download datasheets and manufacturer documentation for Power Integrations TOP246PN.

Datasheets:

powerintegrations-top246pn-datasheets-5768.pdf

TOP246PN Overview

An embedded ac to dc converter is included in 8-DIP (0.300, 7.62mm), 7 Leads package.Tube case is available for the ac dc converter.Through Hole mounts this AC/DC converter.The ac dc converter needs to be operated at -40°C~150°C TJ °C in order to perform.The AC DC converter utilizes a type SWITCHING REGULATOR analog IC.There is 66kHz~132kHz switching frequency.As a result, it has a total of 7 terminations.In this ac/dc converter, there are 7 pins.There are 8 pins in total.This AC to DC converter belongs to the TOPSwitch®-GX family of manufacturers.A total of 1 outputs are available for processing.The ac to dc conversions can be found in Switching Regulator or Controllers .It produces a voltage of 12V .Currently, the maximum current that the ac to dc inverter can take is 4.32A .SVHC for REACH can be found in the standard No SVHC .The AC to DC converter can be powered from the input voltage under 265V .An input voltage of less than 85V V is required to operate the AC to DC inverter.A minimum voltage of 85V is required across the converter.It is possible to supply 265V voltage across the converter.The AC to DC power converter's input voltage (AC) should be below 265V .It is configured to use Adjustable as an output.

TOP246PN Features

Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 66kHz~132kHz
With 7 pins
Output Type : Adjustable

TOP246PN Applications

There are a lot of Power Integrations
TOP246PN AC DC Converters applications.

Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
Networking
Battery Chargers
Power Adaptors
Standby Power Supplies
