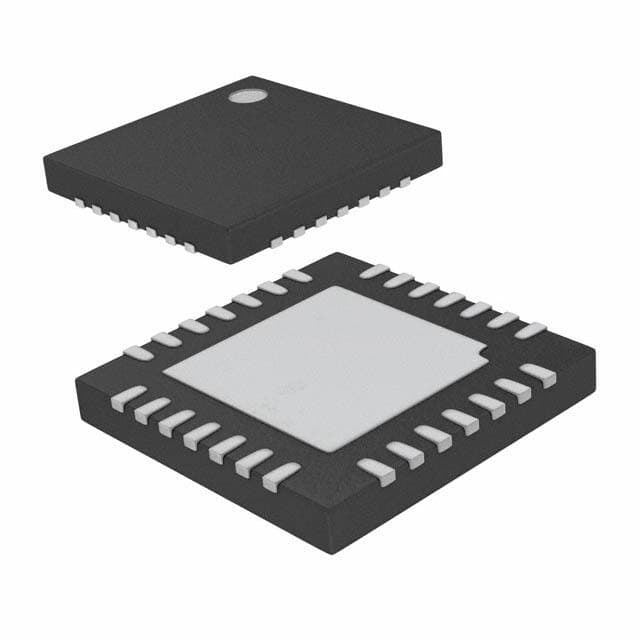

ADI LTC3220EPF-1#TRPBF

Manufacturer No:

LTC3220EPF-1#TRPBF

Manufacturer:

ADI

Package:

28-UFQFN Exposed Pad

Description:

3V 0.4mm PMIC LTC3220 850kMz 3.6V 28-UFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LTC3220EPF-1#TRPBF information

ADI LTC3220EPF-1#TRPBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTC3220EPF-1#TRPBF.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Surface Mount

Package / Case
28-UFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2009

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
28

ECCN Code
EAR99

Type
DC DC Regulator

Terminal Finish
Matte Tin (Sn)

Applications
Backlight

HTS Code
8542.39.00.01

Subcategory
Display Drivers

Technology
CMOS

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.6V

Terminal Pitch
0.4mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
LTC3220

Pin Count
28

JESD-30 Code
S-XQCC-N28

Number of Outputs
18

Qualification Status
Not Qualified

Power Supplies
3V

Topology
Switched Capacitor (Charge Pump)

Current - Output / Channel
20mA

fmax-Min
1.05 MHz

Number of Segments
18

Voltage - Supply (Max)
5.5V

Voltage - Supply (Min)
2.9V

Multiplexed Display Capability
NO

Data Input Mode
SERIAL

Length
4mm

Height Seated (Max)
0.6mm

Width
4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ADI LTC3220EPF-1#TRPBF.

Datasheets:

lineartechnologyanalogdevices-ltc3220ipfpbf-datasheets-0263.pdf

LTC3220EPF-1#TRPBF Overview

Board space is saved by its 28-UFQFN Exposed Pad package.This LED driver has 18 outputs.Surface Mount is used for mounting.This emerges as a DC DC Regulator with high efficiency and reliability.The led light driver is capable of working normally at -40°C~85°C TA.There are considerable benefits for Backlight.Based on the frequency of 850kMz, it operates.It operates with 28 terminations.Undetermined failures will occur if the voltage supply is less than 2.9V.It consists of 18 segments.The base part number for this LED driver is LTC3220.There are 28 pins on it.The supply voltage is optimized to offer a maximum value of 5.5V.According to its characteristics, it is also classified into Display Drivers.

LTC3220EPF-1#TRPBF Features

Available in the 28-UFQFN Exposed Pad package
Operating temperature of -40°C~85°C TA
Frequency of 850kMz
Supply voltage of 3.6V

LTC3220EPF-1#TRPBF Applications

There are a lot of Linear Technology/Analog Devices
LTC3220EPF-1#TRPBF LED Driver ICs applications.

Down lighting
Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
