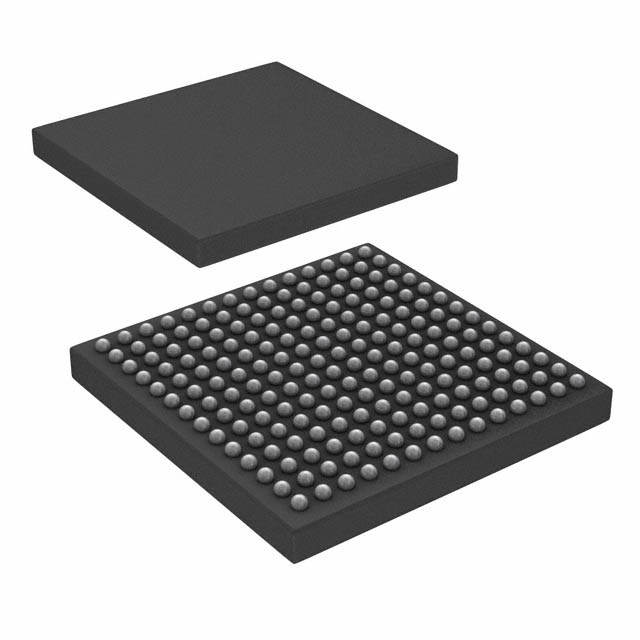

TI TMS320VC5504ZCH

Manufacturer No:

TMS320VC5504ZCH

Manufacturer:

Package:

196-LFBGA

Description:

0.65mm 1.05/1.31.8/3.3V 128kB CPLD TMS320C55x Series 320VC5504 196 Pin 100MHz 1.3V 196-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320VC5504ZCH information

TI TMS320VC5504ZCH technical specifications, attributes, parameters and parts with similar specifications to TI TMS320VC5504ZCH.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
196-LFBGA

Number of Pins
196

Operating Temperature
0°C~70°C TC

Packaging
Tray

Series
TMS320C55x

JESD-609 Code
e1

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
196

Type
Fixed Point

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Additional Feature
ALSO OPERATES 1.05 V AT 60 MHZ

HTS Code
8542.31.00.01

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.3V

Terminal Pitch
0.65mm

Frequency
100MHz

Pin Count
196

Power Supplies
1.05/1.31.8/3.3V

Interface
I2C, I2S, SPI, UART, USB

Max Supply Voltage
3.63V

Min Supply Voltage
1.24V

Memory Size
128kB

RAM Size
256kB

Bit Size
16

Data Bus Width
16b

Address Bus Width
21

Boundary Scan
YES

Low Power Mode
YES

RAM (words)
131072

Voltage - I/O
1.8V 2.5V 2.8V 3.3V

Barrel Shifter
NO

Internal Bus Architecture
SINGLE

Non-Volatile Memory
ROM (128kB)

Voltage - Core
1.30V

Length
10mm

Height Seated (Max)
1.3mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI TMS320VC5504ZCH.

Datasheets:

texasinstruments-tmx320vc5504dzch-datasheets-6019.pdf

TMS320VC5504ZCH Overview

It is a kind of electronic component available in the 196-LFBGA package.It is provided with a packaging way of Tray.As a member of Fixed Point, it is ideally suitable for a wide range of applications.It is mounted in the way of Surface Mount.Operating at the temperature of 0°C~70°C TC ensures its normal operation.The analog voltage range of 1.8V 2.5V 2.8V 3.3V refers to the voltage that can be input or ouput.This digital signal processor is included into the TMS320C55x series.There are 196 terminations for its uses.It operates with the supply voltage of 1.3V.There are 196 component pins.196 pins can be found in its configuration.Based on its base part number of 320VC5504, many ralated parts can be found.It is specifically designed to operate with the frequency of 100MHz.It adopts Surface Mount as its mounting way.Based on its specific characteristics, this device can be classified into the subcategory of Digital Signal Processors.The minimum voltage supplied to this device is as low as 1.24V.The maximum voltage supplied to this device amounts to 3.63V.This device is able to store 128kB data in its memory.It is supplied with 1.05/1.31.8/3.3V electric power.More additional features of ALSO OPERATES 1.05 V AT 60 MHZ can also be provided by this electronic part.

TMS320VC5504ZCH Features

Supplied in the 196-LFBGA package

TMS320VC5504ZCH Applications

There are a lot of Texas Instruments
TMS320VC5504ZCH DSP applications.

Audio signal
Speech processing
Radar
Seismology
Audio
Sonar
Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
