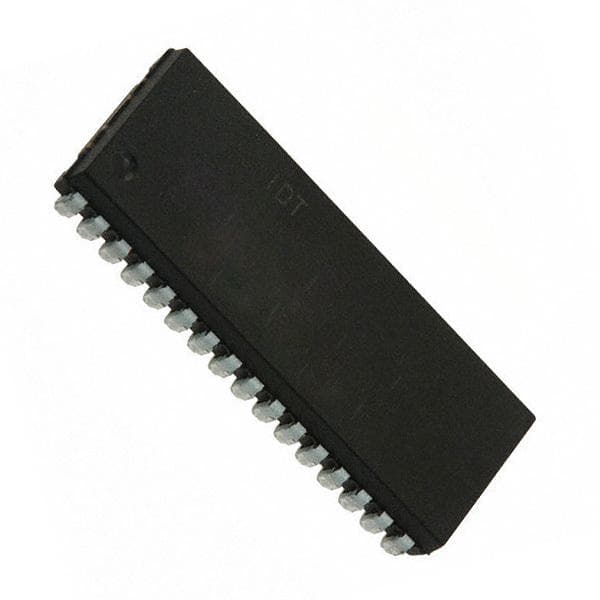

Renesas IDT71024S20TYI8

Manufacturer No:

IDT71024S20TYI8

Manufacturer:

Renesas

Package:

Description:

5V V Surface Mount 32 Pin Memory IC 1 Mb kb 20.96mm mm 140mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IDT71024S20TYI8 information

Renesas IDT71024S20TYI8 technical specifications, attributes, parameters and parts with similar specifications to Renesas IDT71024S20TYI8.

Type
Parameter

Mount
Surface Mount

Number of Pins
32

Packaging
Tape and Reel

Published
2010

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
SRAMs

Technology
CMOS

Terminal Position
DUAL

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
225

Number of Functions
1

Supply Voltage
5V

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
32

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Power Supplies
5V

Temperature Grade
INDUSTRIAL

Interface
Parallel

Min Supply Voltage
4.5V

Number of Ports
1

Nominal Supply Current
140mA

Memory Type
RAM, SRAM - Asynchronous

Access Time
20 ns

Output Characteristics
3-STATE

Memory Width
8

Address Bus Width
17b

Density
1 Mb

I/O Type
COMMON

Sync/Async
Asynchronous

Word Size
8b

Length
20.96mm

Height Seated (Max)
3.76mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas IDT71024S20TYI8.

Datasheets:

integrateddevicetechnology-idt71024s20tyi8-datasheets-2847.pdf

IDT71024S20TYI8 Overview

As far as its memory type goes, it falls into the RAM, SRAM - Asynchronous category. You can get memory ics in a Tape and Reel case. There are 32 terminations on the chip. There are 1 functions supported by this part as part of the comprehensive working process. The memory device is designed to be supplied with an 5V volt power supply in order to operate properly. In this ic memory chip, there is an 32-pin package that encloses the device. It is worth noting that this memory device has 32 pins, which indicates it has 32 memory locations. This memory chip has an operating supply voltage of 5V. As a result of the Surface Mount mounting configuration, this chip is designed to be straightforward, high-efficiency, and easy to install. As far as the nominal supply current of this memory component is concerned, it is rated at 140mA. Using 1 ports, a single memory address can be read and/or written. As for the power supply, this memory chip only needs 5V . A memory map of COMMON bits has been added to the I/O port addresses of this device. Memory ics must operate at a temperature of at least -40°C. Temperatures over 85°C°C are not recommended. There is a common misconception that this component is a type of SRAMs. If this part is to be used, the minimum supply voltage should not be less than 4.5V volts. The operating voltage of the memory ics shall not exceed 5.5V.

IDT71024S20TYI8 Features

32 Pins
Operating Supply Voltage:5V
I/O Type: COMMON

IDT71024S20TYI8 Applications

There are a lot of Integrated Device Technology (IDT)
IDT71024S20TYI8 Memory applications.

multimedia computers
networking
personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
