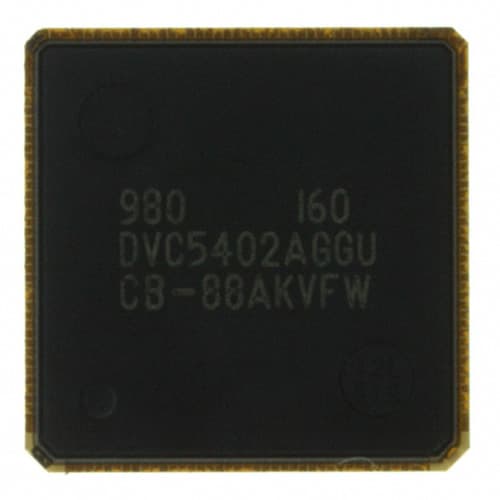

TI TMS320VC5402AGGU16

Manufacturer No:

TMS320VC5402AGGU16

Manufacturer:

Package:

BGA

Description:

32kB CPLD 144 Pin 160MHz 1.6V BGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320VC5402AGGU16 information

TI TMS320VC5402AGGU16 technical specifications, attributes, parameters and parts with similar specifications to TI TMS320VC5402AGGU16.

Type
Parameter

Lifecycle Status
NRND (Last Updated: 2 days ago)

Mount
Surface Mount

Package / Case
BGA

Number of Pins
144

Weight
325.906118mg

Packaging
Bulk

JESD-609 Code
e0

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
144

ECCN Code
3A991.A.2

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
100°C

Min Operating Temperature
-40°C

Additional Feature
ALSO OPERATES AT 3.3V SUPPLY

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
220

Supply Voltage
1.6V

Frequency
160MHz

Pin Count
144

Operating Supply Voltage
3.3V

Temperature Grade
INDUSTRIAL

Min Supply Voltage
1.55V

Memory Size
32kB

RAM Size
32kB

uPs/uCs/Peripheral ICs Type
DIGITAL SIGNAL PROCESSOR, OTHER

Bit Size
16

Frequency (Max)
160MHz

Data Bus Width
16b

Core Architecture
TMS320

Boundary Scan
YES

Low Power Mode
YES

Format
FIXED POINT

Integrated Cache
NO

RAM (words)
16384

Number of UART Channels
0

Number of Timers
2

ROM Programmability
MROM

Number of External Interrupts
4

Barrel Shifter
NO

Internal Bus Architecture
MULTIPLE

Height
1.4mm

Length
12mm

Width
12mm

Thickness
900?m

Download datasheets and manufacturer documentation for TI TMS320VC5402AGGU16.

TMS320VC5402AGGU16 Overview

It is a kind of electronic component that comes in a package of BGA.Packaging is provided in the form of Bulk.In order to use it, it has 144 terminations.Using 1.6V as the supply voltage, it operates.144 components have pins.The configuration of this board includes 144 pins.Specifically, the device is designed to operate at a frequency of 160MHz.Surface Mount is the method of mounting it.The characteristics of this device allow it to be placed in the subcategory of Digital Signal Processors.Devices like this can be powered with as little as 1.55V volts.It is capable of receiving a maximum voltage of 3.6V.3.3V is the supply voltage for this device.There is a memory on this device that can store 32kB data.Data format and transmission speed can be configured for asynchronous serial communication on 0 UART channels.It is also possible to add additional features to ALSO OPERATES AT 3.3V SUPPLY with the help of this electronic component.The uPs/uCs/peripheral ICs of the device employ the DIGITAL SIGNAL PROCESSOR, OTHER type.The processor core uses the architecture of the TMS320 processor.A lower operating temperature than 100°C is recommended.Over -40°C should be the operating temperature.Industrial environments use 2 timers to provide accurate feedback and event activation.External sources are causing 4 interrupts.It should have a maximum frequency below 160MHz.

TMS320VC5402AGGU16 Features

Supplied in the BGA package
Operating supply voltage of 3.3V
DIGITAL SIGNAL PROCESSOR, OTHER as uPs/uCs/Peripheral Ics
4 external interrupts

TMS320VC5402AGGU16 Applications

There are a lot of Texas Instruments
TMS320VC5402AGGU16 DSP applications.

Sonar
Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
Video coding, audio coding
Image compression
Signal processing for telecommunications
