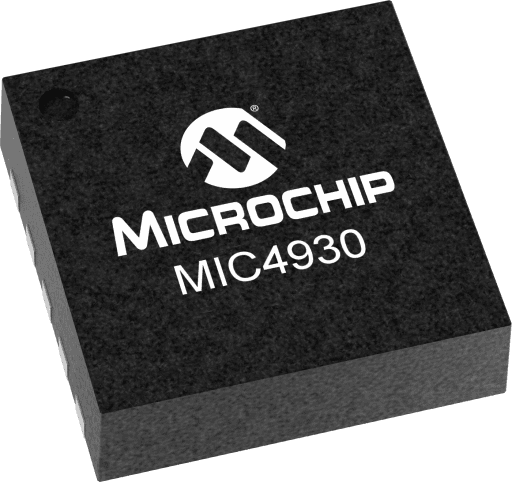

Microchip MIC4930YFL-TR
Manufacturer No:
MIC4930YFL-TR
Manufacturer:
Package:
10-VDFN Exposed Pad
Description:
2.7V to 5.5V, 3A, 3.3MHz POL
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
MIC4930YFL-TR Information
Microchip MIC4930YFL-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC4930YFL-TR.
- Type
- Parameter
- Input Voltage Range Max V (volt)
- 5.5
- Input Voltage Range Min V (volt)
- 2.7
- # of Outputs
- 1
- Output Current
- 3000
- Driver Type
- Buck
- Quiescent Current µA (microampere)
- 0.8
- Synchronous Rectifier
- Yes
- Temp Range Max °C (degrees Celsius)
- 125
- Temp Range Min °C (degrees Celsius)
- -40
- VFB V (volt)
- 0.625
- Type
- Parameter
- VOUT Min V (volt)
- 0.7
- Vref (V)
- 0
- HyperLight Load®
- No
- Light Load Mode
- No
- VIN Min V (volt)
- 2.7
- VIN Max V (volt)
- 5.5
- Adjustable VOUT
- Yes
Download datasheets and manufacturer documentation for Microchip MIC4930YFL-TR.
Data Sheets:
Application Notes:
The MIC4930 is a high-efficiency, 3A synchronous buck regulator with ultra-fast transient response perfectly suited for supplying processor core and I/O voltages from a 5V or 3.3V bus. The MIC4930 provides a switching frequency up to 3.3MHz while achieving peak efficiencies up to 95%. An additional benefit of high-frequency operation is very low output ripple voltage throughout the entire load range with the use of a small output capacitor. The MIC4930 is designed for use with a very small inductor, down to 1μH, and an output ceramic capacitor as small as 10μF without the need for external ripple injection. A wide range of output capacitor types and values can also be accommodated.
The MIC4930 supports safe start-up into a pre-biased output.
The MIC4930 is available in a 10-pin 3mm — 4mm DFN package with an operating junction temperature range from -40°C to +125°C. The MIC4930 is pin-to-pin compatible with the 5A-rated MIC4950YFL.
- Input voltage: 2.7V to 5.5V
- 3A output current
- Up to 95% efficiency
- Up to 3.3MHz operation
- Safe start-up into a pre-biased output
- Power Good output
- Ultra-fast transient response
- Low output voltage ripple
- Low RDS(ON) integrated MOSFET switches
- 0.01μA shutdown current
- Thermal shutdown and current limit protection
- Output voltage as low as 0.7V
- 3mm — 4mm DFN-10L
- -40°C to +125°C junction temperature range
