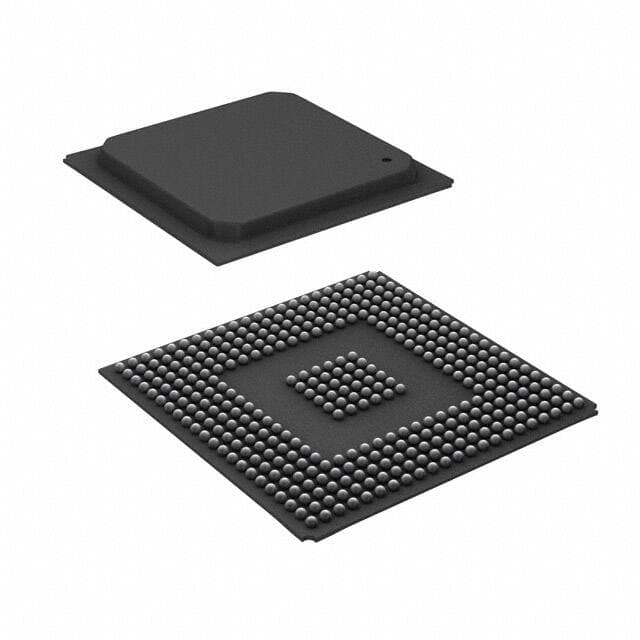

TI TMS320DM6435ZDUQ6

Manufacturer No:

TMS320DM6435ZDUQ6

Manufacturer:

Package:

376-BBGA Exposed Pad

Description:

1mm CPLD TMS320DM643x, DaVinci? Series 320DM6435 376 Pin 600MHz 1.2V 376-BBGA Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320DM6435ZDUQ6 information

TI TMS320DM6435ZDUQ6 technical specifications, attributes, parameters and parts with similar specifications to TI TMS320DM6435ZDUQ6.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 4 days ago)

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
376-BBGA Exposed Pad

Number of Pins
376

Operating Temperature
-40°C~125°C TJ

Packaging
Tube

Series
TMS320DM643x, DaVinci?

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
376

Type
Fixed Point

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.2V

Terminal Pitch
1mm

Frequency
600MHz

Base Part Number
320DM6435

Pin Count
376

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Interface
HPI, I2C, McASP, McBSP, UART, 10/100 Ethernet MAC

Max Supply Voltage
3.63V

Min Supply Voltage
1.14V

Bit Size
32

Data Bus Width
32b

Boundary Scan
YES

Low Power Mode
NO

Integrated Cache
YES

Voltage - I/O
1.8V 3.3V

Number of UART Channels
2

Number of Timers
5

ROM Programmability
MROM

Barrel Shifter
NO

Internal Bus Architecture
MULTIPLE

Non-Volatile Memory
ROM (64kB)

Voltage - Core
1.05V 1.20V

On Chip Data RAM
240kB

Height
2.48mm

Length
23mm

Download datasheets and manufacturer documentation for TI TMS320DM6435ZDUQ6.

TMS320DM6435ZDUQ6 Overview

This is an electronic component with a 376-BBGA Exposed Pad package.The packaging way is Tube.The fact that it belongs to the Fixed Point family means that it can be applied to a wide range of applications.In order to mount it, it must be in the direction of Surface Mount.It is essential that -40°C~125°C TJ is kept at a temperature that ensures proper operation of the machine.Voltages can be input or output within 1.8V 3.3V's analog voltage range.As part of the TMS320DM643x, DaVinci? series, this digital signal processor is included.The uses of this product can be terminated with 376.A voltage of 1.2V is used as the supply voltage.There are pins on the 376 component.The configuration of the device includes 376 pins.With its base part number 320DM6435, it is possible to identify a number of related parts.In order for the device to operate at the frequency of 600MHz, it has been designed specifically.The mounting method of the device is Surface Mount.The device can be classified as part of the Digital Signal Processors subcategory based on its specific characteristics.It is possible to supply as low a voltage as 1.14V to this device.There is a maximum voltage supply of 3.63V to this device.The device operates with a supply voltage of 3.3V.The 2 UART channels support asynchronous serial communication in which data formats and transmission speeds are configurable.Industrial environments utili5e 5 timers for accurate feedback and event activation.

TMS320DM6435ZDUQ6 Features

Supplied in the 376-BBGA Exposed Pad package
Operating supply voltage of 3.3V

TMS320DM6435ZDUQ6 Applications

There are a lot of Texas Instruments
TMS320DM6435ZDUQ6 DSP applications.

Audio
Sonar
Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
Video coding, audio coding
Image compression
