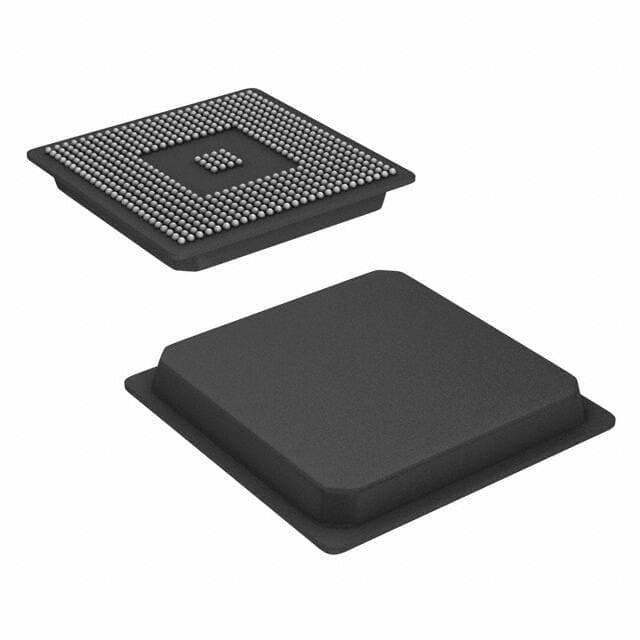

TI TMS320DM642AGNZ5

Manufacturer No:

TMS320DM642AGNZ5

Manufacturer:

Package:

548-BBGA, FCBGA

Description:

1mm 1.43.3V CPLD TMS320DM64x, DaVinci? Series 320DM642 548 Pin 500MHz 1.4V 548-BBGA, FCBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320DM642AGNZ5 information

TI TMS320DM642AGNZ5 technical specifications, attributes, parameters and parts with similar specifications to TI TMS320DM642AGNZ5.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
548-BBGA, FCBGA

Number of Pins
548

Weight
3.599g

Operating Temperature
0°C~90°C TC

Packaging
Tray

Series
TMS320DM64x, DaVinci?

JESD-609 Code
e0

Pbfree Code
no

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
548

ECCN Code
3A001.A.3

Type
Fixed Point

Terminal Finish
Tin/Lead (Sn/Pb)

Additional Feature
ALSO REQUIRES 3.3V SUPPLY

HTS Code
8542.31.00.01

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
220

Supply Voltage
1.4V

Reach Compliance Code
not_compliant

Frequency
500MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
320DM642

Pin Count
548

Qualification Status
Not Qualified

Operating Supply Voltage
1.2V

Power Supplies
1.43.3V

Interface
Host Interface, I2C, McASP, McBSP, PCI

Max Supply Voltage
3.46V

Min Supply Voltage
1.14V

Number of I/O
16

Memory Type
SDRAM, SRAM

Number of Bits
64

Bit Size
32

Data Bus Width
32b

Address Bus Width
23

Boundary Scan
YES

Low Power Mode
YES

Voltage - I/O
3.30V

Barrel Shifter
NO

Internal Bus Architecture
MULTIPLE

Non-Volatile Memory
External

Download datasheets and manufacturer documentation for TI TMS320DM642AGNZ5.

Datasheets:

texasinstruments-tms320dm642agnz5-datasheets-9797.pdf

texasinstruments-tms320dm642agnz5-datasheets-9798.pdf

texasinstruments-tms320dm642agnz5-datasheets-9801.pdf

TMS320DM642AGNZ5 Overview

It is a type of electronic component available in package 548-BBGA, FCBGA.There is a packaging method of Tray provided with it.Due to its membership in Fixed Point, it is ideally suited for a wide range of uses.Surface Mount is mounted in a manner that allows it to be moved.The operation of the device at the temperature of 0°C~90°C TC ensures the normal operation of the device.The digital voltage range of 3.30V refers to the voltage that can be input or output.The TMS320DM64x, DaVinci? series contains this digital signal processor.Its uses have 548 terminations.The voltage supplied by 1.4V is used to operate it.Pins are available for 548 components.In its configuration, 548 pins can be found.Many related parts can be identified by using the 320DM642 part number as a base.500MHz is a frequency at which the device operates according to a specific design.Surface Mount is used as the mounting method.As a result of its specific characteristics, this device can be classified under the Digital Signal Processors subcategory.1.14V is the minimum voltage that can be supplied to this device.This device can be powered by 3.46V voltages.The device operates on a voltage of 1.2V as its supply voltage.Electricity is provided by 1.43.3V.A further set of features can be provided by this electronic part for ALSO REQUIRES 3.3V SUPPLY as well.There are 16 inputs and outputs on the device.The memory type it uses is SDRAM, SRAM.The device contains 64 pieces of information.

TMS320DM642AGNZ5 Features

Supplied in the 548-BBGA, FCBGA package
Operating supply voltage of 1.2V
16 I/Os

TMS320DM642AGNZ5 Applications

There are a lot of Texas Instruments
TMS320DM642AGNZ5 DSP applications.
