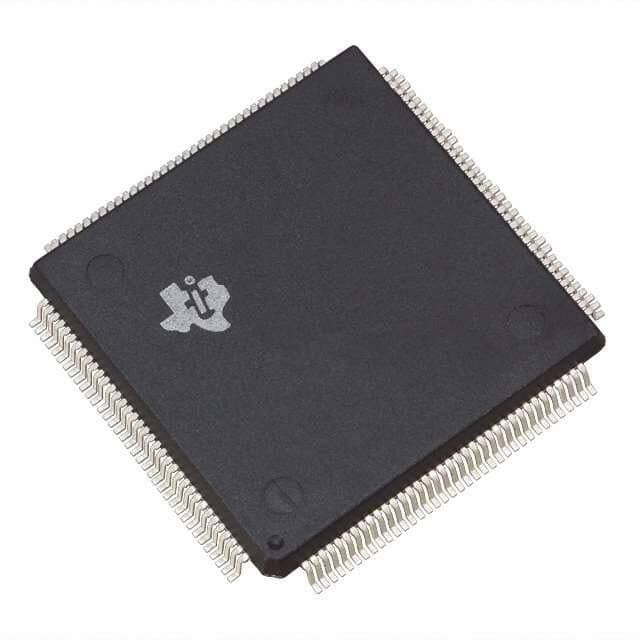

TI TMS320C32PCMA40

Manufacturer No:

TMS320C32PCMA40

Manufacturer:

Package:

144-BQFP

Description:

0.65mm 5V CPLD TMS320C3x Series 320C32 144 Pin 20MHz 5V 144-BQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320C32PCMA40 information

TI TMS320C32PCMA40 technical specifications, attributes, parameters and parts with similar specifications to TI TMS320C32PCMA40.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
144-BQFP

Number of Pins
144

Weight
5.482996g

Operating Temperature
-40°C~125°C TC

Packaging
Tray

Series
TMS320C3x

JESD-609 Code
e4

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
144

ECCN Code
3A991.A.2

Type
Floating Point

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

HTS Code
8542.31.00.01

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
245

Supply Voltage
5V

Terminal Pitch
0.65mm

Frequency
20MHz

Pin Count
144

Operating Supply Voltage
5V

Power Supplies
5V

Interface
Serial Port

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

RAM Size
2kB

Number of Bits
32

Supply Current-Max
390mA

Bit Size
32

Data Bus Width
32b

Address Bus Width
24

Boundary Scan
NO

Low Power Mode
YES

Integrated Cache
NO

RAM (words)
512

Voltage - I/O
5.00V

Number of Serial I/Os
1

Number of Timers
2

Number of External Interrupts
4

Barrel Shifter
YES

Internal Bus Architecture
MULTIPLE

On Chip Data RAM Width
32

Download datasheets and manufacturer documentation for TI TMS320C32PCMA40.

Datasheets:

texasinstruments-tms320c32pcm40-datasheets-1471.pdf

texasinstruments-tms320c32pcma40-datasheets-0076.pdf

texasinstruments-tms320c32pcma40-datasheets-0077.pdf

texasinstruments-tms320c32pcma40-datasheets-0078.pdf

TMS320C32PCMA40 Overview

Basically, it is a type of electronic component that is available in a 144-BQFP package.A packaging way of Tray is provided.Floating Point's wide range of applications makes it ideal for a wide variety of applications.Surface Mount is the direction in which it is mounted.It is important that the device is operated at a temperature of -40°C~125°C TC in order to ensure its normal functioning.As the name implies, the analog voltage range of 5.00V refers to the voltage that can be inserted or removed.This digital signal processor is part of the TMS320C3x series.For its use, it has 144 terminations.The supply voltage is 5V.Pins are present on the 144 component.In its configuration, there are 144 pins.There are a number of related parts that can be identified using the base part number 320C32.In order for the device to operate at 20MHz frequency, there is a specific design.The mounting method is Surface Mount.This device falls into the subcategory of Digital Signal Processors based on its specific characteristics.This device can be powered by voltages as low as 4.75V.5.25V is the maximum voltage that can be supplied to this device.A voltage of 5V is used as the supply voltage.5V electric power supplies it.2 timers are used in industrial environments to provide accurate feedback and event activation.A source external to the system causes 4 interrupts.32 information is stored on the device.In order to transfer data without overloading the CPU, 2 DMA channels are used.Serial 1 I/Os are used to communicate data between devices.

TMS320C32PCMA40 Features

Supplied in the 144-BQFP package
Operating supply voltage of 5V
4 external interrupts

TMS320C32PCMA40 Applications

There are a lot of Texas Instruments
TMS320C32PCMA40 DSP applications.

Radar
Seismology
Audio
Sonar
Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
