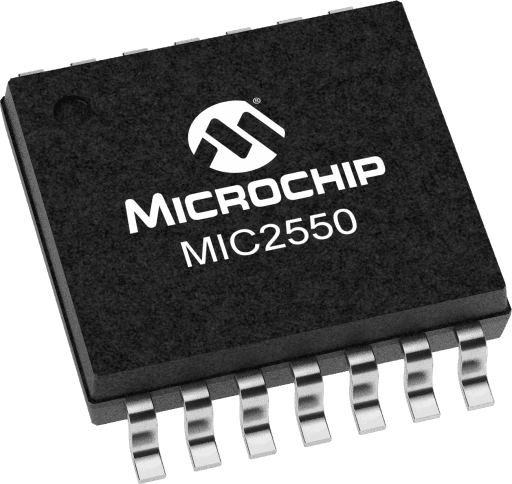

Microchip MIC2550AYTS

Manufacturer No:

MIC2550AYTS

Manufacturer:

Microchip

Package:

14-TSSOP (0.173, 4.40mm Width)

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC2550AYTS information

Microchip MIC2550AYTS technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC2550AYTS.

Type
Parameter

Driver Type
Universal Serial Bus Transceiver

Oja (C/W)
100, 59

supports Speeds
1.5Mbps (low) and 12Mbps (full)

Download datasheets and manufacturer documentation for Microchip MIC2550AYTS.

Data Sheets:

48963ee28f18d6aecf44da6ce779f017.pdf

Application Notes:

55369d38ee07c8113946dcca4ff095a6.pdf

ff35b65cb6cdd4d9c40ad675207afb27.pdf

**NOT RECOMMENDED FOR NEW DESIGNS*** The MIC2550 is a single-chip transceiver that complies with the physical layer specifications for Universal Serial Bus (USB). The MIC2550 supports full-speed (12Mbps) dual supply voltage operation (patent pending) and low-speed (1.5Mbps) operation. A unique dual supply voltage operation allows the MIC2550 to reference the system I/F I/O signals to a supply voltage down to 2.5V while independently powered by the USB VBUS. This allows the system interface to operate at its core voltage without addition of buffering logic and also reduce system operating current.

Compliant to USB Specification Revision 2.0 for low-speed (1.5Mbps) and full-speed (12Mbps) operation
Compliant to IEC-61000-4.2 (Level 2)
Operation down to 2.5V
Dual supply voltage operation
Integrated speed-select termination supply
Very low power consumption meets USB suspend-current requirements
Small 14-pin TSSOP packages

User Guide
