Trinamic Motion Control GmbH TMC429+TMC24X-EVAL

Manufacturer No:

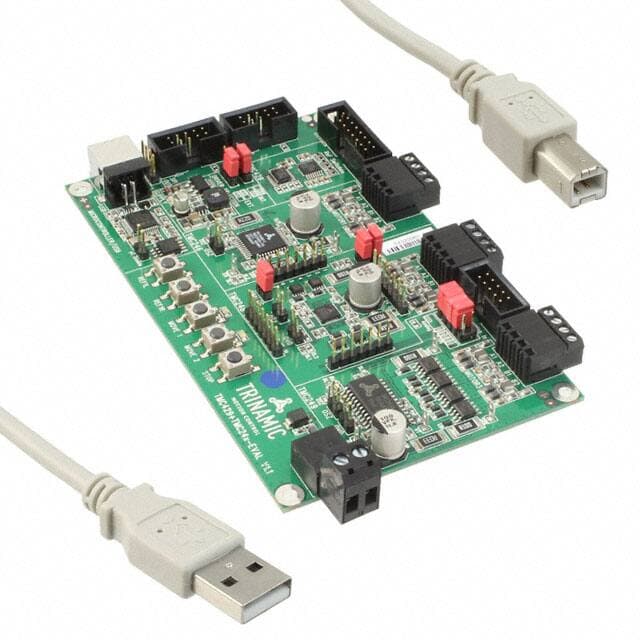

TMC429+TMC24X-EVAL

Manufacturer:

Trinamic Motion Control GmbH

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMC429+TMC24X-EVAL information

Trinamic Motion Control GmbH TMC429+TMC24X-EVAL technical specifications, attributes, parameters and parts with similar specifications to Trinamic Motion Control GmbH TMC429+TMC24X-EVAL.

Type
Parameter

Factory Lead Time
12 Weeks

Published
2016

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Type
Power Management

Function
Motor Controller/Driver, Stepper

Utilized IC / Part
TMC246, TMC248, TMC249, TMC429

Supplied Contents
Board(s)

Evaluation Kit
Yes

Embedded
Yes, MCU, 8-Bit

Secondary Attributes
Graphical User Interface, SPI and USB Interfaces

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Trinamic Motion Control GmbH TMC429+TMC24X-EVAL.

Datasheets:

trinamicmotioncontrolgmbh-tmc429tmc26xeval-datasheets-9160.pdf

TMC429+TMC24X-EVAL Description

A miniature stepper motor controller with an industry-leading feature set is the TMC429. Through the SPI or Step/Direction interface, it can control up to three motors. With 2-phase stepper motors, the SPI interface offers a configurable 6 bit microstep table (64 steps per fullstep). It completes all real-time crucial duties autonomously based on target positions and velocities, which can be changed on the fly. High level control features are provided by the TMC429 for stable and dependable operation. It is possible to communicate with the microcontroller and up to three daisy-chained stepper motor drivers via two distinct 4 wire serial peripheral interfaces.

TMC429+TMC24X-EVAL Features

controls three stepper motors, maximum
Operation at 3.3 V or 5 V using CMOS or TTL compatible IOs
Easy-to-use 4-wire serial interface for C with a serial protocol
interface with data speeds up to 1 Mbit/s for SPITM motor drivers
Direction/Step interface

TMC429+TMC24X-EVAL Applications

Switching applications

User Guide
