Trinamic Motion Control GmbH TMCM-3110-TMCL

Manufacturer No:

TMCM-3110-TMCL

Manufacturer:

Trinamic Motion Control GmbH

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMCM-3110-TMCL information

Trinamic Motion Control GmbH TMCM-3110-TMCL technical specifications, attributes, parameters and parts with similar specifications to Trinamic Motion Control GmbH TMCM-3110-TMCL.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Chassis Mount

Operating Temperature
-30°C~40°C

Series
TMCM

Published
2014

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Type
Board

Voltage - Supply
24V~48VDC

Output Voltage
48V

Interface
RS-485, USB

Current - Output
2.8A

Voltage - Load
9V~52.8V

Motor Type
Stepper

Control / Drive Type
Stepper, Bipolar

Number of Motors
3

Length
100.076mm

Width
130.048mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Trinamic Motion Control GmbH TMCM-3110-TMCL.

Datasheets:

trinamicmotioncontrolgmbh-tmcm3110cable-datasheets-8759.pdf

TMCM-3110-TMCL Description

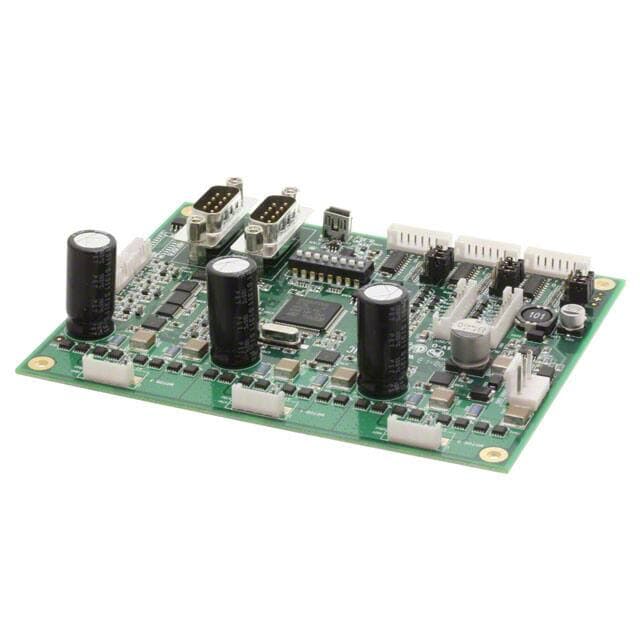

For 2-phase bipolar stepper motors, the TMCM-3110 is a small 3-axes stepper motor controller/driver module. It offers a straightforward handling, is highly integrated, and can be applied to a variety of decentralized applications. The TMCM-3110 supports up to three bipolar stepper motors, each having a maximum coil current of 2.8A RMS and nominal supply voltages of +48V DC.

Each motor has a unique incremental encoder (a/b/n) connector as well as a separate motor, reference/end switch connector. RS485, CAN, or USB interfaces are all capable of supporting communication. For a variety of possible applications, the module provides 8 general-purpose inputs and 8 general-purpose outputs. The cost of power consumption is maintained low because to TRINAMIC's coolStepTM technology's exceptional energy efficiency.

TMCM-3110-TMCL Features

Up to 8 multi-purpose inputs (+24V compatible, incl. 2 dedicated analog inputs)

Up to 8 multi-purpose outputs (Open-drain, incl. 2 outputs for currents up to 1A)

Inputs for 3 incremental encoders (differential and TTL / open-drain)

S/D in for all three axes (as alternative to on-board motion controller)

RS485 communication interface (9pin D-SUB male)

CAN 2.0B communication interface (9pin D-SUB male)

USB 2.0 full-speed (12Mbit/s) communication interface (mini-USB connector)

Up to 256 microsteps per full step

High-efficient operation, low power dissipation

Dynamic current control

Integrated protection

stallGuard2 feature for stall detection

coolStep feature for reduced power consumption and heat dissipation

TMCM-3110-TMCL Applications

Temperature Measurement

Pressure Measurement

Flow Meters

Factory Automation and Process Control

User Guide
