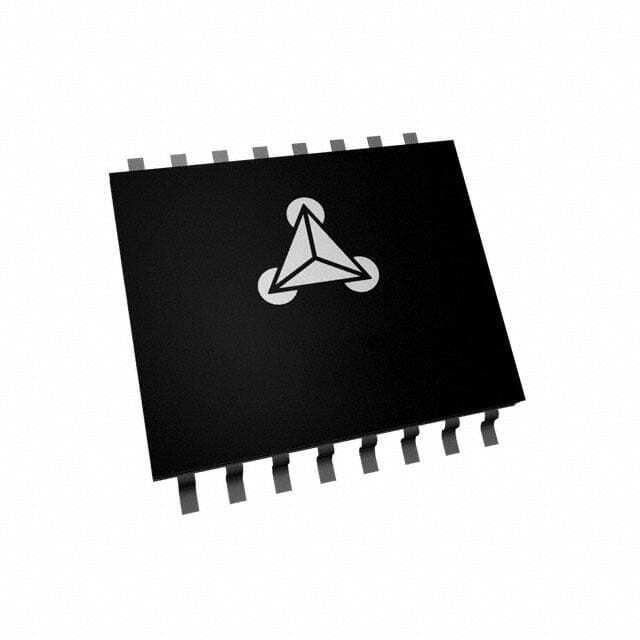

Trinamic Motion Control GmbH TMC4210-I

Manufacturer No:

TMC4210-I

Manufacturer:

Trinamic Motion Control GmbH

Package:

16-SSOP (0.154, 3.90mm Width)

Description:

3.91mm mm Motor Drivers 16 3.3V V 4.93mm mm

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMC4210-I information

Trinamic Motion Control GmbH TMC4210-I technical specifications, attributes, parameters and parts with similar specifications to Trinamic Motion Control GmbH TMC4210-I.

Type
Parameter

Factory Lead Time
9 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-SSOP (0.154, 3.90mm Width)

Operating Temperature
-40°C~105°C TA

Packaging
Tube

Published
2015

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

Applications
General Purpose

Additional Feature
ALSO REQUIRE SUPPLY 4.5V TO 5.5V

HTS Code
8542.39.00.01

Technology
CMOS

Voltage - Supply
3.3V~5V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
3.3V

Terminal Pitch
0.635mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-G16

Function
Controller - Commutation, Direction Management

Supply Voltage-Min (Vsup)
3V

Interface
SPI

Analog IC - Other Type
STEPPER MOTOR CONTROLLER

Output Configuration
Step/Direction

Motor Type - Stepper
Bipolar

Step Resolution
>256 Microsteps

Length
4.93mm

Height Seated (Max)
1.73mm

Width
3.91mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Trinamic Motion Control GmbH TMC4210-I.

Datasheets:

trinamicmotioncontrolgmbh-tmc4210i-datasheets-0020.pdf

TMC4210-I Overview

Drivers controllers is designed with Tube package.The part is packged with 16-SSOP (0.154, 3.90mm Width) case.Drivers controllers is recommended to mount the part by Surface Mount.Drivers controllers is fDrivers controllersting for the component connected in General Purpose.The device can supply 3.3V~5V volts.With regard to operating temperature, it ranges -40°C~105°C TA. There are 16 terminations available in the part.Please take in mind that this amplifier should be run at 3.3V.Its recommended mounting way is Surface Mount.The device employs the STEPPER MOTOR CONTROLLER analog IC.Drivers controllers is also characterized by ALSO REQUIRE SUPPLY 4.5V TO 5.5V.
