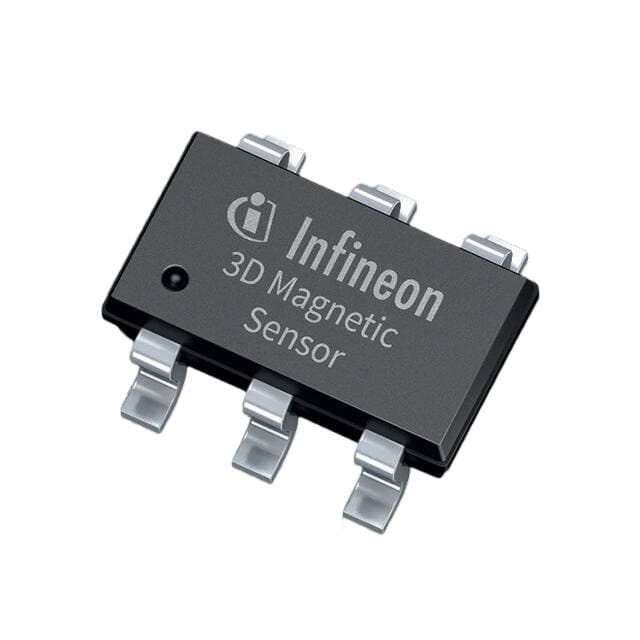

INFINEON TLV493DA1B6HTSA2

Manufacturer No:

TLV493DA1B6HTSA2

Manufacturer:

INFINEON

Package:

SOT-23-6 Thin, TSOT-23-6

Description:

Automotive, AEC-Q100 Series For Measuring Linear, Rotary Position SMD (SMT) Tab External Magnet, Not Included -40°C~125°C I2C 2.7V~3.5V 0° ~ 360°, Continuous Hall Effect SOT-23-6 Thin, TSOT-23-6

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TLV493DA1B6HTSA2 information

INFINEON TLV493DA1B6HTSA2 technical specifications, attributes, parameters and parts with similar specifications to INFINEON TLV493DA1B6HTSA2.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SOT-23-6 Thin, TSOT-23-6

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q100

Published
2015

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

Termination
SMD/SMT

HTS Code
8542.39.00.01

Voltage - Supply
2.7V~3.5V

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.95mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
I2C

Termination Style
SMD (SMT) Tab

JESD-30 Code
R-PDSO-G6

Supply Voltage-Max (Vsup)
3.5V

Supply Voltage-Min (Vsup)
2.8V

Analog IC - Other Type
ANALOG CIRCUIT

Operating Supply Current
80μA

Halogen Free
Not Halogen Free

Sensing Method
Hall Effect

For Measuring
Linear, Rotary Position

Max Junction Temperature (Tj)
125°C

Rotation Angle - Electrical, Mechanical
0° ~ 360°, Continuous

Height
1.1mm

Length
2.9mm

Width
1.6mm

RoHS Status
ROHS3 Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for INFINEON TLV493DA1B6HTSA2.

TLV493DA1B6HTSA2 Description

The 3D magnetic sensor TLV493D-A1B6 offers accurate three-dimensional sensing with extremely low power consumption in a small 6-pin package.

With its magnetic field detection in x, y, and z-direction the sensor reliably measures three-dimensional, linear, and rotation movements.

Applications include joysticks, control elements (white goods, multifunction knops), electric meters (anti-tampering), and any other application that requires

accurate angular measurements or low power consumption. The integrated temperature sensor can furthermore be used for plausibility checks.

TLV493DA1B6HTSA2 Features

3D magnetic sensing

Very low power consumption = 10 µA during operations (10 Hz, typ.)

Power down mode with 7 nA power consumption

Digital output via 2-wire based standard I2C interface up to 1 MBit/sec

12-bit data resolution for each measurement direction

Bx, By, and Bz linear field measurement up to +130 mT

Excellent matching of X/Y measurement for accurate angle sensing

Variable update frequencies and power modes (configurable during operation)

Supply voltage range = 2.8 V…3.5 V, Temperature range Tj = -40°C…125°C

Small, industrial 6-pin TSOP package

Triggering by external µC possible

Interrupt signal available to wake up a microcontroller

Temperature measurement

TLV493DA1B6HTSA2 Applications

Joysticks

Control elements (white goods, multifunction knops)

Electric meters (anti-tampering)
