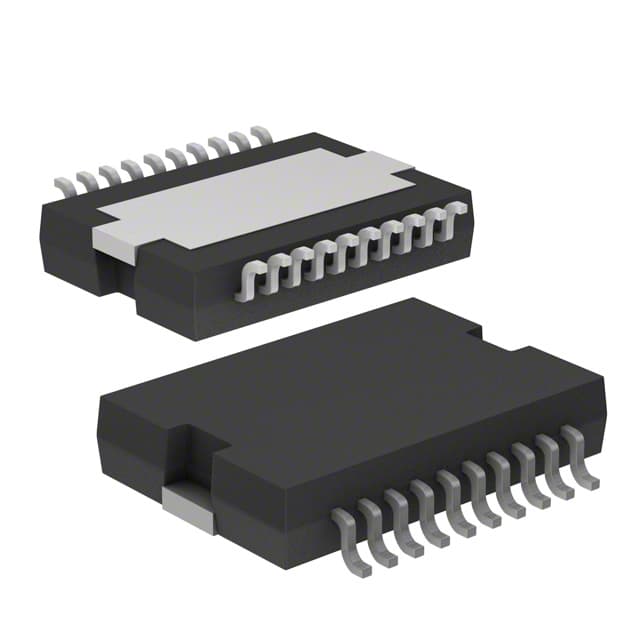

INFINEON TLE6217GAUMA1

Manufacturer No:

TLE6217GAUMA1

Manufacturer:

INFINEON

Package:

20-PowerSOIC (0.433, 11.00mm Width)

Description:

N-Channel 1.27mm PMIC TLE6217 20 Pin 20-PowerSOIC (0.433, 11.00mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TLE6217GAUMA1 information

INFINEON TLE6217GAUMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON TLE6217GAUMA1.

Type
Parameter

Factory Lead Time
15 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
20-PowerSOIC (0.433, 11.00mm Width)

Number of Pins
20

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
2003

JESD-609 Code
e3

Pbfree Code
no

Part Status
Last Time Buy

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
4

Terminal Pitch
1.27mm

Base Part Number
TLE6217

Pin Count
20

Number of Outputs
4

Output Type
N-Channel

Max Output Current
5A

Nominal Supply Current
8mA

Output Configuration
Low Side

Output Current
3A

Voltage - Supply (Vcc/Vdd)
Not Required

Input Type
Non-Inverting

Switch Type
General Purpose

Halogen Free
Halogen Free

Ratio - Input:Output
1:1

Voltage - Load
4.8V~32V

Min Dual Supply Voltage
45V

Fault Protection
Open Load Detect, Over Temperature, Over Voltage

Output Peak Current Limit-Nom
7.5A

Rds On (Typ)
200m Ω, 350m Ω

Turn Off Time
30 μs

Built-in Protections
OVER CURRENT; OVER VOLTAGE; THERMAL

Length
15.9mm

Width
11mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for INFINEON TLE6217GAUMA1.

TLE6217GAUMA1 Overview

The LED driver's packaged as a Tape & Reel (TR).The 20-PowerSOIC (0.433, 11.00mm Width) package contains it.Surface Mount is the mounting type of the LED driver.The switch type is General Purpose.To ensure reliable operation, the temperature should be set to -40°C~150°C TJ.There is a default setting of 4 for output.To operate, it needs a supply voltage of Not Required.The maximum output voltage is N-Channel volts.This object belongs to the TLE6217 family.It contains 20 terminations.For operation, 20 pins are used.The LED driver has 4 functions.The maximum output current drops to 5A in order to meet the operation criteria.The lighting driver is mounted in the way of Surface Mount.There are 20 pins in total on this board.It is set to 3A in this case.

TLE6217GAUMA1 Features

TLE6217GAUMA1 Applications

There are a lot of Infineon Technologies
TLE6217GAUMA1 Power Switches ICs applications.

Portable GPS Device
Set-top-box
USB Power Distribution
Notebook PC
Telecom and Network Systems
PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
Low Voltage I/O System Power
