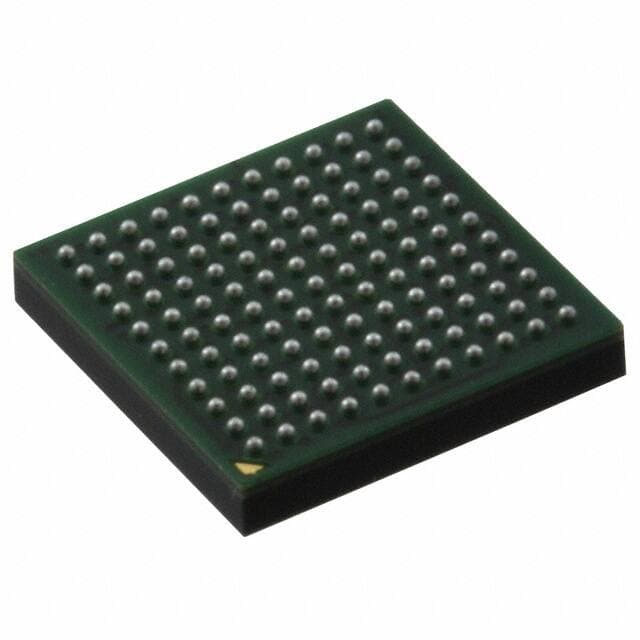

NXP MK64FN1M0VDC12

Manufacturer No:

MK64FN1M0VDC12

Manufacturer:

NXP

Package:

121-XFBGA

Description:

1MB 1M x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller Kinetis K60 Series 3.3V 121-XFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MK64FN1M0VDC12 information

NXP MK64FN1M0VDC12 technical specifications, attributes, parameters and parts with similar specifications to NXP MK64FN1M0VDC12.

Type
Parameter

Factory Lead Time
13 Weeks

Mounting Type
Surface Mount

Package / Case
121-XFBGA

Surface Mount
YES

Operating Temperature
-40°C~105°C TA

Packaging
Tray

Series
Kinetis K60

Published
2002

JESD-609 Code
e1

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
121

ECCN Code
3A991.A.2

Terminal Finish
TIN SILVER COPPER

HTS Code
8542.31.00.01

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
40

JESD-30 Code
S-PBGA-B121

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
1.71V

Number of I/O
83

Speed
120MHz

RAM Size
256K x 8

Voltage - Supply (Vcc/Vdd)
1.71V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
ARM® Cortex®-M4

Peripherals
DMA, I2S, LVD, POR, PWM, WDT

Clock Frequency
50MHz

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
1MB 1M x 8

Connectivity
CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG

Data Converter
A/D 37x16b; D/A 2x12b

Has ADC
YES

DMA Channels
YES

PWM Channels
YES

DAC Channels
YES

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP MK64FN1M0VDC12.

Environmental Information:

nxpusainc-tef6657hnv102k-environmentalinformation-9391.pdf

PCN Packaging:

nxpusainc-mbc13720nt1-pcnpackaging-6034.pdf

nxpusainc-mkw41z512vht4r-pcnpackaging-0380.pdf

MK64FN1M0VDC12 MCU Description

In an ultra-small packaging, the MK64FN1M0VDC12 provides high memory density, low power consumption, and optimal integration. It has the same comprehensive enablement and scalability as the Kinetis family. In addition, the MCU offers a full-retention low-power mode of 6 a with a wake-up time of 5 s, a run current of 250 a/MHz when executing from Flash, and is cost-optimized with new USB crystal-less capability.

MK64FN1M0VDC12 MCU Features

Performance
? Up to 120 MHz ARM? Cortex?-M4 core with DSP
instructions and floating-point unit
Memories and memory interfaces
? Up to 1 MB program flash memory and 256 KB RAM
? upto 128 KB FlexNVM and 4 KB FlexRAM on devices
with FlexMemory
? FlexBus external bus interface
System peripherals
? Multiple low-power modes, low-leakage wake-up unit
? Memory protection unit with multi-master protection
? External watchdog monitor and software watchdog
? 16-channel DMA controller
Security and integrity modules
? Hardware CRC module
? Hardware random-number generator
? Hardware encryption supporting DES, 3DES, AES,
MD5, SHA-1, and SHA-256 algorithms
? 128-bit unique identification (ID) number per chip
Analog modules
? Two 12-bit DACs
? Voltage reference
? Two 16-bit SAR ADCs
? Three analog comparators (CMP)
Communication interfaces
? Three SPI modules
? I2S module
? Three I2C modules. Support for up to 1 Mbit/s
? Secure Digital Host Controller (SDHC)
? Controller Area Network (CAN) module
? Six UART modules
? USB full-/low-speed On-the-Go controller
? Ethernet controller with MII and RMII interface
Timers
? Two 2-channel FlexTimers (PWM/Quad decoder)
? Real-time clock
? programmable delay block
? Two 8-channel Flex-Timers (PWM/Motor control)
? IEEE 1588 timers
? 32-bit PITs and 16-bit low-power timers
Clocks
? 48 MHz Internal Reference Clock (IRC48M)
? PLL, FLL, and multiple internal oscillators
? 3 to 32 MHz and 32 kHz crystal oscillator
Operating Characteristics
? Temperature range (ambient): ?40 to 105°C
? Flash write voltage range: 1.71 to 3.6 V
? Voltage range: 1.71 to 3.6 V

MK64FN1M0VDC12 MCU Applications

Avionics
Major Home Appliances
Defibrillator
Smart Power Socket and Light Switch
Motion Control and Robotics
Motor Drives
POS Terminal
Robotic Appliance
