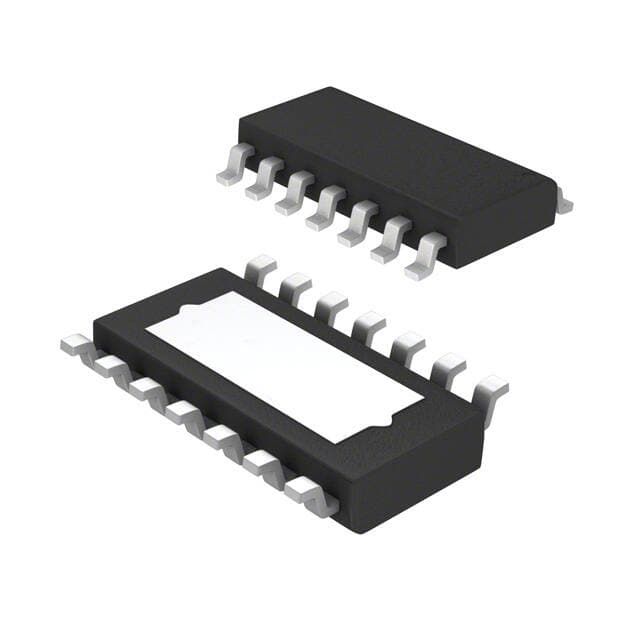

INFINEON TLE42794EXUMA1

Manufacturer No:

TLE42794EXUMA1

Manufacturer:

INFINEON

Package:

14-LSSOP (0.154, 3.90mm Width) Exposed Pad

Description:

Reset Fixed TLE42794 PMIC Automotive, AEC-Q100, OPTIREG™ Series 14 14-LSSOP (0.154, 3.90mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TLE42794EXUMA1 information

INFINEON TLE42794EXUMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON TLE42794EXUMA1.

Type
Parameter

Factory Lead Time
20 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
14-LSSOP (0.154, 3.90mm Width) Exposed Pad

Number of Pins
14

Watchdog Timers
No

Operating Temperature
-40°C~150°C

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q100, OPTIREG™

Published
2014

JESD-609 Code
e3

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
14

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Terminal Position
SINGLE

Terminal Form
GULL WING

Number of Functions
1

Base Part Number
TLE42794

Pin Count
14

Current - Supply (Max)
8mA

Voltage - Input (Max)
45V

Output Type
Fixed

Max Output Current
150mA

Max Supply Voltage
45V

Output Configuration
Positive

Quiescent Current
150A

Control Features
Reset

Accuracy
2 %

Output Voltage 1
5V

Number of Regulators
1

Min Input Voltage
5.5V

Protection Features
Over Current, Over Temperature, Reverse Polarity, Short Circuit

Current - Quiescent (Iq)
280μA

Voltage Dropout (Max)
0.5V @ 100mA

Halogen Free
Halogen Free

PSRR
70dB (100Hz)

Dropout Voltage
250mV

Min Current Limit
150mA

Nominal Output Voltage
5V

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for INFINEON TLE42794EXUMA1.

TLE42794EXUMA1 Overview

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in 14-LSSOP (0.154, 3.90mm Width) Exposed Pad case. On the Linear IC itself, there are 14 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~150°C degrees. There is a Positive configured as the output function for this IC regulator. There are a total of 14 pins on this board. There is a dropout voltage of 250mV volts on this IC regulator. Chips have 14 pins. For your information, the basic part number for this regulator IC is TLE42794. In order to meet the operation requirements, its maximal output current reaches 150mA. It operates in the 150A Quiescent Current state. This IC regulator is a part of the Automotive, AEC-Q100, OPTIREG™ Series of devices. The top supply voltage can be 45V volts.

TLE42794EXUMA1 Features

250mV dropout voltage
Over Current, Over Temperature, Reverse Polarity, Short Circuit Protection Features
Positive Output Configuration
Fixed Output Type

TLE42794EXUMA1 Applications

There are a lot of Infineon Technologies
TLE42794EXUMA1 Linear Voltage Regulators applications.

Battery-powered device
Communication device
Personal communication device
Portable telephone
Electronic notebook
Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
