INFINEON TLE42744GV50ATMA1
INFINEON TLE42744GV50ATMA1

INFINEON TLE42744GV50ATMA1

Manufacturer No:

TLE42744GV50ATMA1

Manufacturer:

INFINEON

Package:

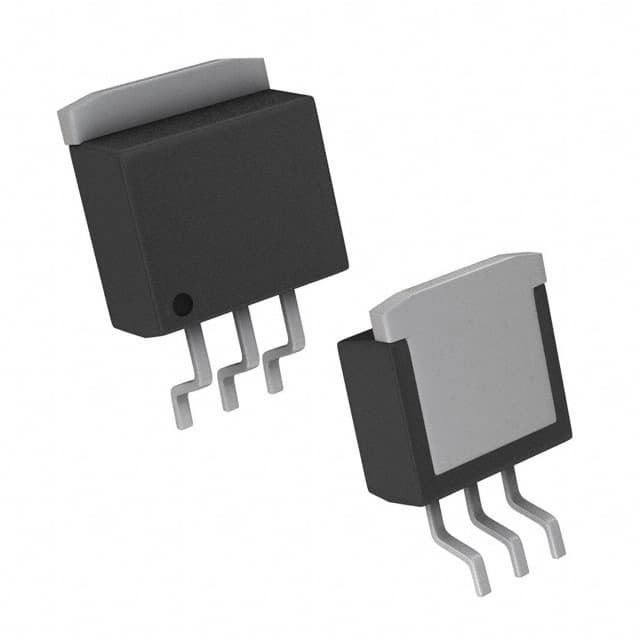

TO-263-4, D2Pak (3 Leads + Tab), TO-263AA

Description:

Fixed TLE42744 PMIC Automotive, AEC-Q100, OPTIREG™ Series 4 TO-263-4, D2Pak (3 Leads + Tab), TO-263AA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TLE42744GV50ATMA1 information

INFINEON TLE42744GV50ATMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON TLE42744GV50ATMA1.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-263-4, D2Pak (3 Leads + Tab), TO-263AA
  • Number of Pins
  • 4
  • Watchdog Timers
  • No
  • Operating Temperature
  • -40°C~150°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • Automotive, AEC-Q100, OPTIREG™
  • Published
  • 2008
  • JESD-609 Code
  • e3
  • Pbfree Code
  • no
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Terminal Position
  • SINGLE
  • Terminal Form
  • GULL WING
  • Number of Functions
  • 1
  • Base Part Number
  • TLE42744
  • Pin Count
  • 4
  • JESD-30 Code
  • R-PSSO-G3
  • Current - Supply (Max)
  • 30mA
  • Output Voltage
  • 5V
  • Output Type
  • Fixed
  • Max Output Current
  • 400mA
  • Max Supply Voltage
  • 40V
  • Output Configuration
  • Positive
  • Quiescent Current
  • 100A
  • Accuracy
  • 2 %
  • Output Voltage 1
  • 5V
  • Number of Regulators
  • 1
  • Min Input Voltage
  • 5.5V
  • Protection Features
  • Over Current, Over Temperature, Reverse Polarity, Short Circuit
  • Current - Quiescent (Iq)
  • 220μA
  • Voltage Dropout (Max)
  • 0.5V @ 250mA
  • Halogen Free
  • Halogen Free
  • PSRR
  • 60dB (100Hz)
  • Dropout Voltage
  • 250mV
  • Nominal Output Voltage
  • 5V
  • Width
  • 9.25mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for INFINEON TLE42744GV50ATMA1.

Datasheets:

Other Related Documents:

PCN Packaging:

ConflictMineralStatement:

TLE42744GV50ATMA1 Overview


This Voltage Regulator IC comes inTape & Reel (TR) packaging. This battery regulator is contained in a TO-263-4, D2Pak (3 Leads + Tab), TO-263AA package. There are 3 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~150°C degrees. This regulator's output function is configured to be Positive. IC voltage regulator has a sum of 4 pins. Its dropout voltage is 250mV volts. The component's pin number remains 4. FYI, the basic part number for this IC regulator is TLE42744. It works in 400mA output current at mostIt operates in the 100A Quiescent Current state. It is part of the Automotive, AEC-Q100, OPTIREG™ Series. The IC voltage regulator can work with a supply voltage of 40V volts at top.

TLE42744GV50ATMA1 Features


250mV dropout voltage
Over Current, Over Temperature, Reverse Polarity, Short Circuit Protection Features
Positive Output Configuration
Fixed Output Type


TLE42744GV50ATMA1 Applications


There are a lot of Infineon Technologies
TLE42744GV50ATMA1 Linear Voltage Regulators applications.


  • Home electric appliance
  • Battery-powered device
  • Communication device
  • Personal communication device
  • Portable telephone
  • Electronic notebook
  • Camera
  • Video equipment
  • CPU power supply
  • Switching regulator
