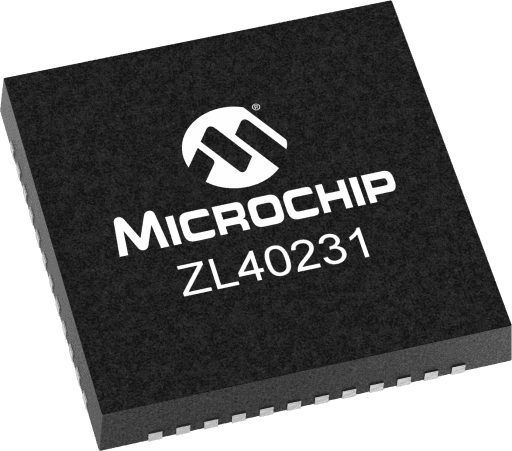

Microchip ZL40231LDF1
Microchip ZL40231LDF1

Microchip ZL40231LDF1

Manufacturer No:

ZL40231LDF1

Manufacturer:

Microchip

Package:

QFN-48

Description:

Precision 1:10 Low Skew/Low Jitter Buffer

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL40231LDF1 information

Microchip ZL40231LDF1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL40231LDF1.

  • Type
  • Parameter
  • Description
  • Fanout Buffer
  • Input
  • LVPECL/LVDS/HCSL/SSTL/CML/LVCMOS
  • Output
  • LVPECL/LVDS/HCSL/LVCMOS
  • Supply Voltage
  • 1.5/1.8/2.5/3.3
  • Max Freq (GHz)
  • 1.6
  • Icc (mA)
  • 0
  • Max Within Device Skew (ps)
  • 40
  • OE
  • True
  • Input Mux
  • True
  • Number Of Outputs
  • 10
  • PCIe Gen
  • 1,2,3,4,5
  • Buffer Type
  • Fanout
  • Fanout
  • 1:10

Download datasheets and manufacturer documentation for Microchip ZL40231LDF1.

Data Sheets:

Application Notes:

The ZL40231 is a low additive jitter, low power 3 x 10 LVPECL/HCSL/LVDS fanout buffer.

Two inputs can accept signal in differential (LVPECL, SSTL, LVDS, HSTL, CML ) or single ended (LVPECL or LVCMOS) format and the third input can accept a single ended signal or it can be used to build a crystal oscillator by connecting an external crystal resonator between its XIN and XOUT pins.

The ZL40231 has ten LVPECL/HCSL/LVDS outputs which can be powered from 3.3V or 2.5V supply. Each output bank (A and B) can be independently set to be LVPECL, LVDS, HCSL or Hi-Z via control OUTA/B_TYPE_SEL0/1 pins.

The control inputs: OUTA/B_TYPE_SEL0/1 and IN_SEL0/1 have low input threshold voltage so they can be driven from a device with low I/O voltage (down to 1.2V).



  • 3 to 1 input Multiplexer: Two inputs accept any differential (LVPECL, HCSL, LVDS, SSTL, CML, LVCMOS) or a single ended signal and the third input accepts a crystal or a single ended signal
  • Ten differential LVPECL/LVDS/HCSL outputs
  • One LVCMOS output
  • Ultra-low additive jitter: 24fs (integration band: 12kHz to 20MHz at 625MHz clock frequency)
  • Supports clock frequencies from 0 to 1.6GHz
  • Supports 2.5V or 3.3V power supplies on LVPECL,LVDS or HCSL outputs
  • Supports 1.5V, 1.8V, 2.5V or 3.3V on LVCMOS outputs
  • Embedded Low Drop Out (LDO) Voltage regulator provides superior Power Supply Noise Rejection
  • Maximum output to output skew of 40ps
  • Device controlled via control pins
