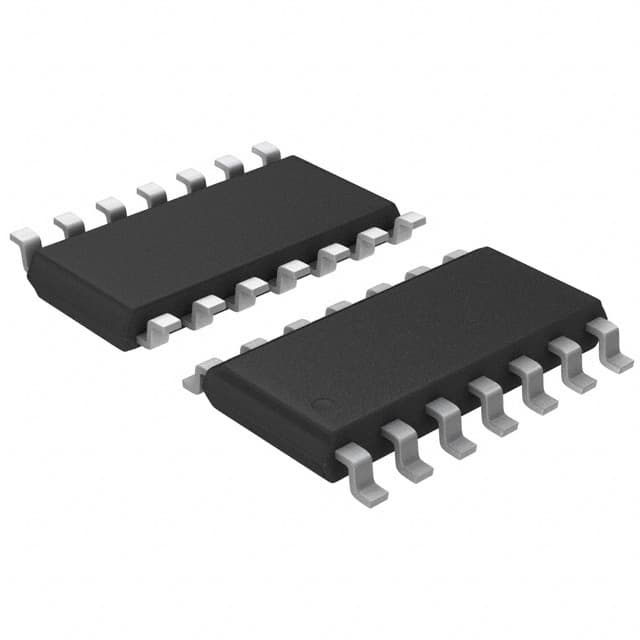

TI TLC27L9CNSG4

Manufacturer No:

TLC27L9CNSG4

Manufacturer:

Package:

14-SOIC (0.209, 5.30mm Width)

Description:

30mA per Channel 0.7pA 65 dB Instrumentational OP Amps 3V~16V ±1.5V~8V TLC27 14-SOIC (0.209, 5.30mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TLC27L9CNSG4 information

TI TLC27L9CNSG4 technical specifications, attributes, parameters and parts with similar specifications to TI TLC27L9CNSG4.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
14-SOIC (0.209, 5.30mm Width)

Number of Pins
14

Operating Temperature
0°C~70°C

Packaging
Tube

Series
LinCMOS™

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Base Part Number
TLC27

Number of Circuits
4

Operating Supply Current
57μA

Nominal Supply Current
68μA

Slew Rate
0.05V/μs

Amplifier Type
General Purpose

Common Mode Rejection Ratio
65 dB

Current - Input Bias
0.7pA

Voltage - Supply, Single/Dual (±)
3V~16V ±1.5V~8V

Output Current per Channel
30mA

Input Offset Voltage (Vos)
210μV

Gain Bandwidth Product
110kHz

Voltage Gain
114.32dB

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TI TLC27L9CNSG4.

TLC27L9CNSG4 Overview

The linear amplifier is packaged in a 14-SOIC (0.209, 5.30mm Width) case which makes it easy for the consumer to handle. Op amps are General Purpose types of amplifier on the chip. It comes in a Tube case, which protects instrumentation amplifier from damage during delivery. 14 pins are available on the instrumentation amplifier. With regard to input offset voltage, instrumentation amplifier is rated at 210μV. This electronic part is best mounted with type Surface Mount. Regarding the operating temperature of this device, instrumentation amplifier performs well at a temperature of 0°C~70°C . You can run this op amp ic on 57μA . Op amp is a member of the 114.32dB's 114.32dB family. On this buffer amplifier, there are 4 circuits. This buffer amplifier is assigned within the LinCMOS™ series by its manufacturer.

TLC27L9CNSG4 Features

114.32dB voltage gain

TLC27L9CNSG4 Applications

There are a lot of Texas Instruments
TLC27L9CNSG4 Instrumentational OP Amps applications.

Proportional operation circuits
Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
