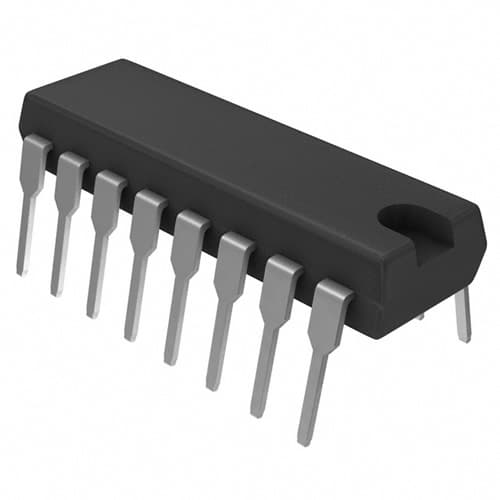

TI MPC508APG4

Manufacturer No:

MPC508APG4

Manufacturer:

Package:

PDIP

Description:

Analog Switches BREAK-BEFORE-MAKE 16 Pins 15V PDIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MPC508APG4 information

TI MPC508APG4 technical specifications, attributes, parameters and parts with similar specifications to TI MPC508APG4.

Type
Parameter

Mount
Through Hole

Package / Case
PDIP

Number of Pins
16

Weight
1.053808g

Packaging
Rail/Tube

JESD-609 Code
e4

Number of Terminations
16

Resistance
1.5kOhm

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Technology
CMOS

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
2.54mm

Pin Count
16

Operating Supply Voltage
22V

Temperature Grade
INDUSTRIAL

Number of Channels
1

Power Dissipation-Max
1.28W

Operating Supply Current
700?A

Nominal Supply Current
700?A

Power Dissipation
1.28W

Throw Configuration
DPST

Logic Function
Multiplexer

Number of Inputs
8

Supply Type
Dual

Neg Supply Voltage-Nom (Vsup)
-15V

Turn-Off Delay Time
250 ns

Max Dual Supply Voltage
22V

Min Dual Supply Voltage
5V

Dual Supply Voltage
9V

Off-state Isolation-Nom
68 dB

Switching
BREAK-BEFORE-MAKE

Switch-on Time-Max
500ns

Switch-off Time-Max
500ns

Signal Current-Max
0.02A

Height
4.57mm

Length
19.3mm

Width
6.35mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI MPC508APG4.

MPC508APG4 Overview

Presented in PDIP, this electrical component is convenient for overseas shipping. High reliability is ensured by the advanced packaging method Rail/Tube. Totally, there are 16 terminations. A high-quality output is provided by the electrical component's 1 channels. It is safe to turn on and run the electronic component with a 15V voltage supply. A total of 16 pins are injected into the electrical part body. In this multiplexer, the internal resistance is 1.5kOhm. For details about the functions of 16 pins, please refer to the datasheets. The digital multiplexer has a low cost Dual supply. For this digital switch to work, 700?A current would suffice. There is no problem with using dual supply voltage, but it should not exceed 22V. With dual power supplies, you should attach at least 5V. The electrical part can be operated at 22V voltage levels. The 8 inputs need to be operated in order to work. An environment with a temperature greater than 85°C should not be used to operate the digital switches.

MPC508APG4 Features

1 Channels
700?A Supply Current

MPC508APG4 Applications

There are a lot of Texas Instruments
MPC508APG4 Analog Switches & Multiplexers ICs applications.

Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and nonfault-protected)
New designs requiring multiplexer functions
Cellular phones
