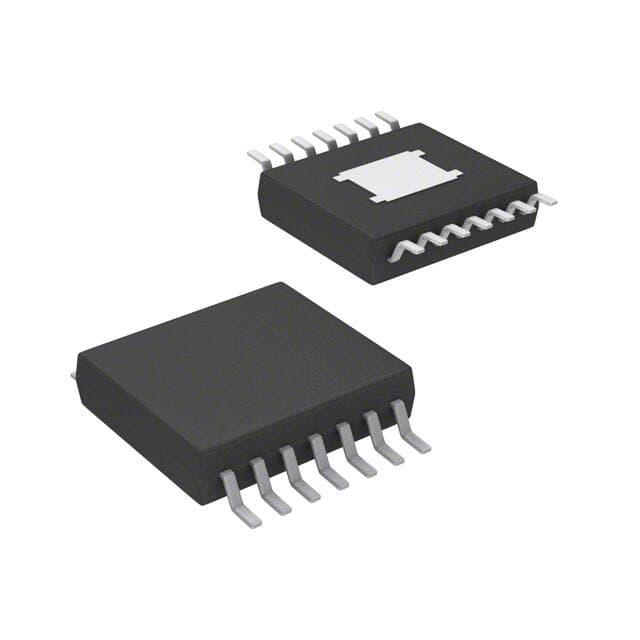

TI THS3125IPWPR

Manufacturer No:

THS3125IPWPR

Manufacturer:

Package:

14-PowerTSSOP (0.173, 4.40mm Width)

Description:

440mA per Channel 6?A 58 dB Instrumentational OP Amps 10V~30V ±5V~15V THS3125 14 Pins 14-PowerTSSOP (0.173, 4.40mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

THS3125IPWPR information

TI THS3125IPWPR technical specifications, attributes, parameters and parts with similar specifications to TI THS3125IPWPR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 week ago)

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount

Package / Case
14-PowerTSSOP (0.173, 4.40mm Width)

Surface Mount
YES

Number of Pins
14

Weight
58.003124mg

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
14

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Subcategory
Operational Amplifier

Packing Method
TR

Max Power Dissipation
3.3W

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
15V

Pin Count
14

Number of Elements
2

Operating Supply Current
8.4mA

Nominal Supply Current
21mA

Power Dissipation
3.3W

Slew Rate
1550V/?s

Amplifier Type
Current Feedback

Common Mode Rejection Ratio
58 dB

Current - Input Bias
6?A

Voltage - Supply, Single/Dual (±)
10V~30V ±5V~15V

Output Current per Channel
440mA

Input Offset Voltage (Vos)
4.4mV

Bandwidth
160MHz

Gain Bandwidth Product
138MHz

Neg Supply Voltage-Nom (Vsup)
-15V

Unity Gain BW-Nom
138000 kHz

Power Supply Rejection Ratio (PSRR)
53dB

Low-Offset
NO

Frequency Compensation
YES

Supply Voltage Limit-Max
16.5V

Settling Time
64 ns

Low-Bias
NO

Micropower
NO

Download datasheets and manufacturer documentation for TI THS3125IPWPR.

THS3125IPWPR Overview

Op amp is packaged in 14-PowerTSSOP (0.173, 4.40mm Width) case. Op amps are Current Feedback types of amplifier on the chip. Instrumentation amplifier is delivered in a Tape & Reel (TR) case. The number of terminations approaches 14. Linear amplifier has a total of 14 pins. Please take in mind that op amp should be run at 15V. Instrumentation amplifier is a part of Operational Amplifier. Linear amplifier includes 14 pins. Regarding input offset voltage, buffer amplifier rates 4.4mV voltage. Surface Mount is the recommended mounting type of operational amplifiers. With regard to operating temperature, op amp ranges -40°C~85°C. Operational amplifier can operate supply current at 8.4mA. Op amp has total of 2 elements. It is used TR to pack the op amps.
