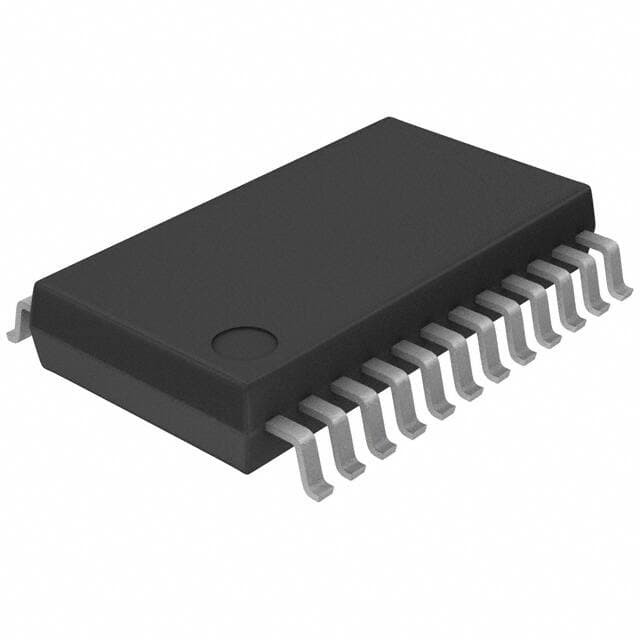

ROHM BD9483FV-GE2

Manufacturer No:

BD9483FV-GE2

Manufacturer:

ROHM

Package:

24-LSSOP (0.220, 5.60mm Width)

Description:

0.65mm PMIC 24 Pin 150kHz 24V 24-LSSOP (0.220, 5.60mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BD9483FV-GE2 information

ROHM BD9483FV-GE2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BD9483FV-GE2.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
24-LSSOP (0.220, 5.60mm Width)

Number of Pins
24

Operating Temperature
-40°C~85°C TA

Packaging
Cut Tape (CT)

Published
2013

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Type
DC DC Controller

Applications
Backlight

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Supply Voltage
24V

Terminal Pitch
0.65mm

Frequency
150kHz

Number of Outputs
2

Max Supply Voltage
35V

Topology
Step-Up (Boost)

Internal Switch(s)
No

Dimming
Analog, PWM

Number of Segments
8

Voltage - Supply (Min)
11V

Multiplexed Display Capability
NO

Length
7.8mm

Height Seated (Max)
1.35mm

Width
5.6mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BD9483FV-GE2.

BD9483FV-GE2 Overview

In order to save board space, the led driver uses the 24-LSSOP (0.220, 5.60mm Width) package. For the design of this LED driver, 2 outputs are used.The mounting method is Surface Mount.As a DC DC Controller, it has high efficiency and reliability.The led light driver operates normally at -40°C~85°C TA. The benefits it provides to Backlight are considerable.In this case, the frequency is 150kHz.The terminations 24 are designed for its operation.To form its configuration, 24 pins are used.A voltage supply less than 11V will cause undetermined failures.The segment count is 8.Surface Mount is mounted in the way.A maximum supply voltage of 35V is acceptable.

BD9483FV-GE2 Features

Available in the 24-LSSOP (0.220, 5.60mm Width) package
Operating temperature of -40°C~85°C TA
Frequency of 150kHz
Supply voltage of 24V

BD9483FV-GE2 Applications

There are a lot of ROHM Semiconductor
BD9483FV-GE2 LED Driver ICs applications.

Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
Replacement lamps
