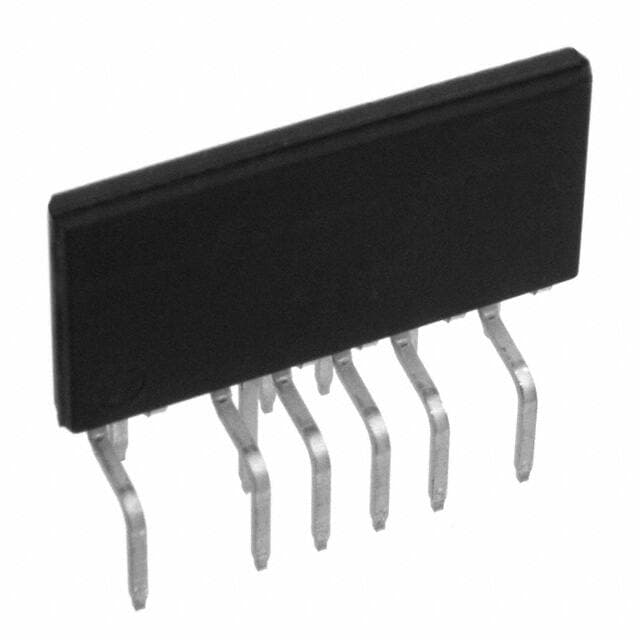

Power Integrations TFS758HG

Manufacturer No:

TFS758HG

Manufacturer:

Power Integrations

Package:

16-SSIP, 12 Leads, Exposed Pad, Formed Leads

Description:

11.1V~13.4V 16 Pin AC to DC power converter HiperTFS® Series 1 Outputs 66kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TFS758HG information

Power Integrations TFS758HG technical specifications, attributes, parameters and parts with similar specifications to Power Integrations TFS758HG.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Through Hole

Package / Case
16-SSIP, 12 Leads, Exposed Pad, Formed Leads

Number of Pins
16

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
HiperTFS®

Published
2012

JESD-609 Code
e3

Part Status
Last Time Buy

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Power Rating
236W

Max Power Dissipation
236W

Number of Outputs
1

Output Voltage
400V

Analog IC - Other Type
DUAL SWITCHING CONTROLLER

Voltage - Supply (Vcc/Vdd)
11.1V~13.4V

Output Power
278W

Control Features
EN

Topology
Flyback, Forward

Min Input Voltage
100V

Frequency - Switching
66kHz

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage, Short Circuit

Max Duty Cycle
73 %

Duty Cycle
70%

Output Isolation
Isolated

Voltage - Breakdown
530V 725V

Voltage - Start Up
12.1V

Min Input Voltage (AC)
100V

Max Input Voltage (AC)
400V

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Power Integrations TFS758HG.

Datasheets:

powerintegrations-tfs758hg-datasheets-9789.pdf

TFS758HG Overview

A ac to dc converter of the package 16-SSIP, 12 Leads, Exposed Pad, Formed Leads contains the ac to dc converter.In Tube case, the ac dc converter is available.There is a mounting point for this AC/DC converter in the way of Through Hole .The ac dc converter should be operated at a temperature of -40°C~150°C TJ °C to deliver its optimal performance.DUAL SWITCHING CONTROLLER analog ICs are employed in this AC DC converter.Switching frequency reaches 66kHz Hz.This AC/DC converter is suitable for operation in the range of 11.1V~13.4V supply voltage (Vcc/Vdd).There are 16 pins on this ac/dc converter.It belongs to the manufacturer family of HiperTFS® .Running 1 outputs is available.As a result, its output voltage is 400V .You are able to read the REACH SVHC standard at: No SVHC .There is a possibility of powering the AC to DC converter under a voltage of 400V .In the AC to DC transformer of a coverter, the output power generated is 278W .It is possible to operate the AC to DC inverter with an input voltage that is less than 100V V.An input voltage (AC) should be applied to the AC to DC power converter that falls below 400V volts.

TFS758HG Features

Packaged with 16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Switching Frequency at 66kHz
With 16 pins

TFS758HG Applications

There are a lot of Power Integrations
TFS758HG AC DC Converters applications.

Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
Networking
Battery Chargers
Power Adaptors

User Guide
