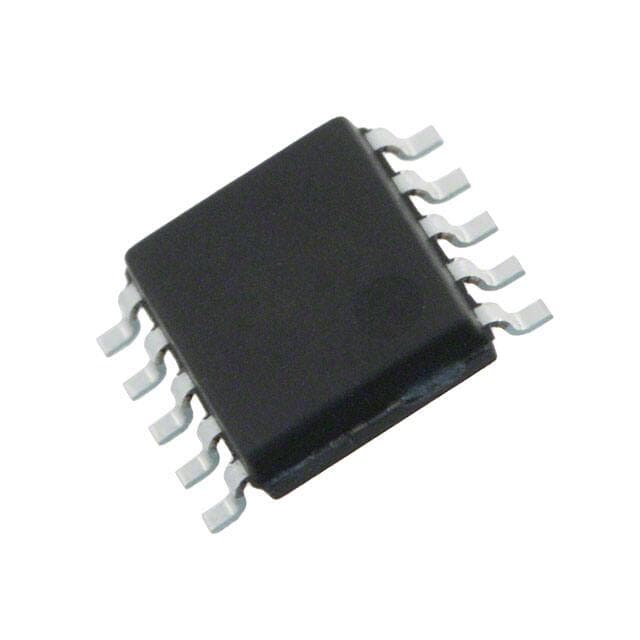

ONSEMI LA6588MC-AH

Manufacturer No:

LA6588MC-AH

Manufacturer:

ONSEMI

Package:

10-LSOP (0.173, 4.40mm Width)

Description:

Tape & Reel (TR) 10-LSOP (0.173, 4.40mm Width) Logic 8V~26.4V Surface Mount -30°C~90°C TA DC Motors, General Purpose Half Bridge (2) Inductive 8V~26.4V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LA6588MC-AH information

ONSEMI LA6588MC-AH technical specifications, attributes, parameters and parts with similar specifications to ONSEMI LA6588MC-AH.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
10-LSOP (0.173, 4.40mm Width)

Number of Pins
10

Operating Temperature
-30°C~90°C TA

Packaging
Tape & Reel (TR)

Published
2012

JESD-609 Code
e6

Feature
Auto Restart

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
10

Terminal Finish
Tin/Bismuth (Sn/Bi)

Applications
DC Motors, General Purpose

Additional Feature
SEATED HGT-NOM

Subcategory
Motion Control Electronics

Technology
Bipolar

Voltage - Supply
8V~26.4V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
24V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
LA6588

Pin Count
10

Number of Outputs
1

Qualification Status
Not Qualified

Output Voltage
28V

Supply Voltage-Max (Vsup)
26.4V

Power Supplies
24V

Supply Voltage-Min (Vsup)
8V

Interface
Logic

Analog IC - Other Type
BRUSHLESS DC MOTOR CONTROLLER

Nominal Supply Current
9.5mA

Output Configuration
Half Bridge (2)

Power Dissipation
800mW

Output Current
800mA

Halogen Free
Halogen Free

Output Current per Channel
800mA

Collector Emitter Voltage (VCEO)
26V

Max Collector Current
800mA

Voltage - Load
8V~26.4V

Fault Protection
Over Temperature, Short Circuit

Motor Type
Brushless DC (BLDC)
