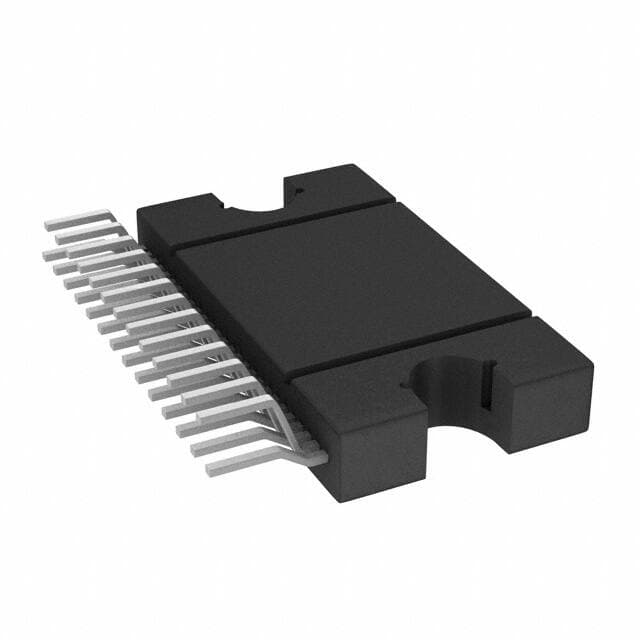

NXP TDA8595J/N2S,112

Manufacturer No:

TDA8595J/N2S,112

Manufacturer:

NXP

Package:

27-SIP Formed Leads

Description:

22 kHz kHz Audio Amplifiers 18V V 27-SIP Formed Leads

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TDA8595J/N2S,112 information

NXP TDA8595J/N2S,112 technical specifications, attributes, parameters and parts with similar specifications to NXP TDA8595J/N2S,112.

Type
Parameter

Factory Lead Time
15 Weeks

Mounting Type
Through Hole

Package / Case
27-SIP Formed Leads

Surface Mount
NO

Usage Level
Automotive grade

Operating Temperature
-40°C~105°C TA

Packaging
Tube

Published
2007

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
27

Type
Class AB

Voltage - Supply
8V~18V

Terminal Position
ZIG-ZAG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Terminal Pitch
1mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
TDA8595

Pin Count
27

JESD-30 Code
R-PZFM-T27

Qualification Status
Not Qualified

Output Type
4-Channel (Quad)

Supply Voltage-Max (Vsup)
18V

Supply Voltage-Min (Vsup)
8V

Number of Channels
4

Supply Current-Max
400mA

Output Power
64W

Bandwidth
22 kHz

Gain
26 dB

Screening Level
AEC-Q100

Max Output Power x Channels @ Load
64W x 4 @ 2 Ω

Harmonic Distortion
10%

Source Url Status Check Date
2013-06-14 00:00:00

Features
Depop, I2C, Mute, Short-Circuit and Thermal Protection, Standby

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NXP TDA8595J/N2S,112.

Datasheets:

nxpusainc-tda8595jn2s112-datasheets-0600.pdf

Environmental Information:

nxpusainc-tef6657hnv102k-environmentalinformation-9391.pdf

TDA8595J/N2S,112 Overview

This package is embedded in 27-SIP Formed Leads .This device is packaged in the way of Tube .27 terminations occur when a transmission line is terminated by a device with the same characteristic impedance as the transmission line.Amp parts uses 4-Channel (Quad) as the output.Class AB is the type of this electrical device.Amp parts is mounted in the way of Through Hole .There is 8V~18V supply voltage for this electrical device.Amp parts is equipped wAmp partsh 4 channels.Ideally, the operating temperature should not exceed -40°C~105°C TA .The device is equipped with 27 pins.This item belongs to the family of TDA8595 .Amp parts is recommended that the supply voltage (Vsup) be maintained above 8V for normal operation.18V represents the maximal supply voltage (Vsup).The device is powered by a voltage of 14.4V .A maximum supply current of 400mA can be reached.

TDA8595J/N2S,112 Features

27-SIP Formed Leads package
27 pin count
TDA8595 family

TDA8595J/N2S,112 Applications

There are a lot of NXP USA Inc.
TDA8595J/N2S,112 audio amplifiers applications.

Addition and subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator and differentiator circuits
Logarithmic and exponential operation circuits
Multiplication and division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
