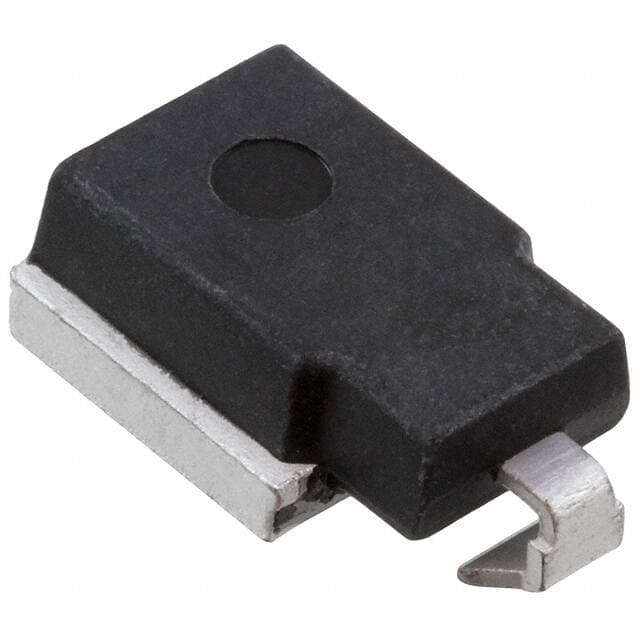

SANKEN SZ-10N40

Manufacturer No:

SZ-10N40

Manufacturer:

SANKEN

Package:

Nonstandard SMD

Description:

ZENER DIODE ±10% 40V 10?A @ 32V -55°C~175°C 5W 1 Terminations ZENER Nonstandard SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SZ-10N40 information

SANKEN SZ-10N40 technical specifications, attributes, parameters and parts with similar specifications to SANKEN SZ-10N40.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Nonstandard SMD

Diode Element Material
SILICON

Operating Temperature
-55°C~175°C

Packaging
Tape & Reel (TR)

Published
2012

Tolerance
±10%

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
1

ECCN Code
EAR99

HTS Code
8541.10.00.50

Max Power Dissipation
5W

Technology
ZENER

Terminal Position
SINGLE

Terminal Form
C BEND

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
1

JESD-30 Code
R-PSSO-C1

Qualification Status
Not Qualified

Number of Elements
1

Configuration
SINGLE

Diode Type
ZENER DIODE

Current - Reverse Leakage @ Vr
10?A @ 32V

Voltage - Forward (Vf) (Max) @ If
1V @ 6A

Reference Voltage
38V

Voltage - Zener (Nom) (Vz)
40V

Zener Voltage
40V

Voltage Tol-Max
5.26%

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for SANKEN SZ-10N40.

Datasheets:

sanken-sz10n27vl-datasheets-0511.pdf

SZ-10N40 Overview

An electrical device like this requires a reverse leakage current of 10?A @ 32V.A maximum voltage (Tol) can be supplied if 5.26% is set.While the device is operating, the maximum voltage - Zener (Nom) is reduced to 40V.For operation, diode reaches 1V @ 6A at the maximum voltage - Forward (Vf).
