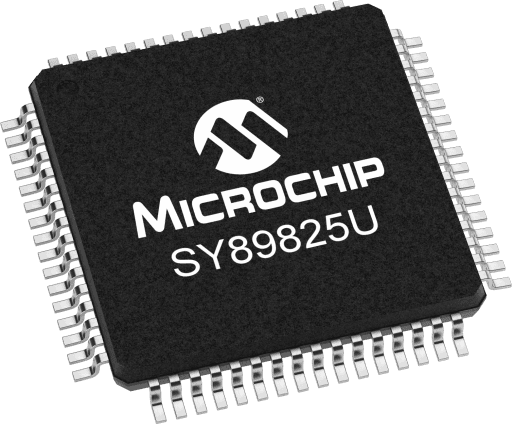

Microchip SY89825UHY

Manufacturer No:

SY89825UHY

Manufacturer:

Microchip

Package:

64-TQFP Exposed Pad

Description:

3.3V 1:22 LVDS Fanout/Translator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89825UHY information

Microchip SY89825UHY technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89825UHY.

Type
Parameter

Description
2:22

Input
LVPECL/LVDS

Output
LVPECL

Supply Voltage
2.5/3.3

Max Freq (GHz)
1

Icc (mA)
100

Max Within Device Skew (ps)
20

OE
True

Input Mux
True

Number Of Outputs
0

Buffer Type
Fanout

Fanout
1:22

Max Prop Delay (ps)
1200

Download datasheets and manufacturer documentation for Microchip SY89825UHY.

User Guide:

02cc56e1ef40eaae24a62cc58396d661.pdf

Data Sheets:

4ae839451ed7f213f9089e2f2abc3208.pdf

The SY89825U is a High Performance Bus Clock Driver with 22 differential LVPECL output pairs. This part is designed for use in low voltage (2.5V, 3.3V) applications which require a large number of outputs to drive precisely aligned, ultra low skew signals to their destination. The input is multiplexed from either LVDS or LVPECL by the CLK_SEL pin. The LVDS input includes a 100Ω internal termination, thus eliminating the need for external termination. The Output Enable (OE) is synchronous so that the outputs will only be enabled/disabled when they are already in the LOW state. This eliminates any chance of generating a runt clock pulse when the device is enabled/ disabled as can happen with an asynchronous control.The SY89825U features low pin-to-pin skew (35ps max.) --performance previously unachievable in a standard product having such a high number of outputs. The SY89825U is available in a single space saving package which provides a lower overall cost solution. In addition, a single chip solution improves timing budgets by eliminating the multiple device solution with their corresponding large part-to-part skew.

LVPECL or LVDS input to 22 LVPECL outputs
100K ECL compatible outputs
LVDS input includes 100O termination
>2GHz fMAX (toggle)
<35ps max. ch-ch skew
Low voltage operation: 2.5V, 3.3V
Temperature range: -40°C to +85°C
Output enable pin
Available in a 64-Pin EPAD-TQFP
