Manufacturer No:

SY89547LMG

Manufacturer:

Microchip

Package:

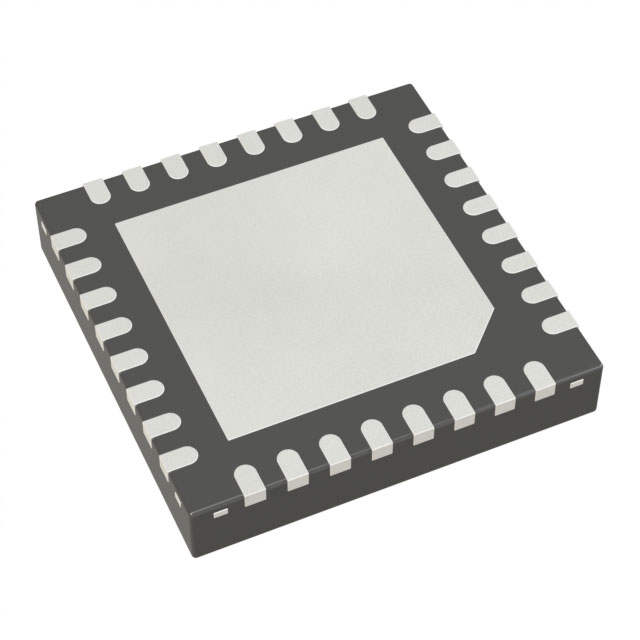

32-VFQFN Exposed Pad, 32-MLF®

Description:

3.3V, 3.2Gbps 4:1 LVDS Multiplexer w/ 1:2 Fanout

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY89547LMG information

Microchip SY89547LMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY89547LMG.

  • Type
  • Parameter
  • Description
  • 4:02
  • Input
  • ANY
  • Output
  • LVDS
  • Supply Voltage
  • 3.3V
  • Max Freq (GHz)
  • 4
  • Icc (mA)
  • 68
  • Max Within Device Skew (ps)
  • 20
  • OE
  • False
  • Input Mux
  • False
  • Number Of Outputs
  • 0
  • Max Prop Delay (ps)
  • 540

Download datasheets and manufacturer documentation for Microchip SY89547LMG.

Data Sheets:

User Guide:

The SY89547L is a precision, high-speed 4:1 differential multiplexer that provides two copies of the selected input. The high speed LVDS (350mV) compatible outputs with a guaranteed throughput of up to 3.2Gbps over temperature and voltage.The SY89547L differential inputs include Micrel's unique, 3-pin internal termination design that allows access to the termination network through a VT pin. This feature allows the device to easily interface to different logic standards, both AC- and DC-coupled without external resistor-bias and termination networks. The result is a clean, stub-free, low jitter interface solution.The SY89547L operates from a single 3.3V supply, and is guaranteed over the full industrial temperature range (-40°C to +85°C). For applications that require a 2.5V supply, consider the SY89546U. For applications that only require one differential output, consider the SY89544U or SY89545L. The SY89547L is part of a Micrel's Precision Edge® product family.



    • Selects among four differential inputs
    • Provides two copies of the selected input
    • DC-to >3.2Gbps data rate throughput
    • <620ps In-to-Out tpd
    • <150ps tr/tf
    • Unique input isolation design minimizes crosstalk
    • <1psRMS random jitter
    • <10psPP deterministic jitter
    • <10psPP total jitter (clock)
    • <0.7psRMS crosstalk-induced jitter
    • Internal input termination
    • Unique input termination and VTpin accepts DCcoupled and AC-coupled inputs (LVDS, LVPECL, CML)
    • 350mV LVDS output swing
    • Power supply 3.3V ±10%
    • -40°C to +85°C temperature range
    • Available in 32-pin (5mm x 5mm) MLF® package
