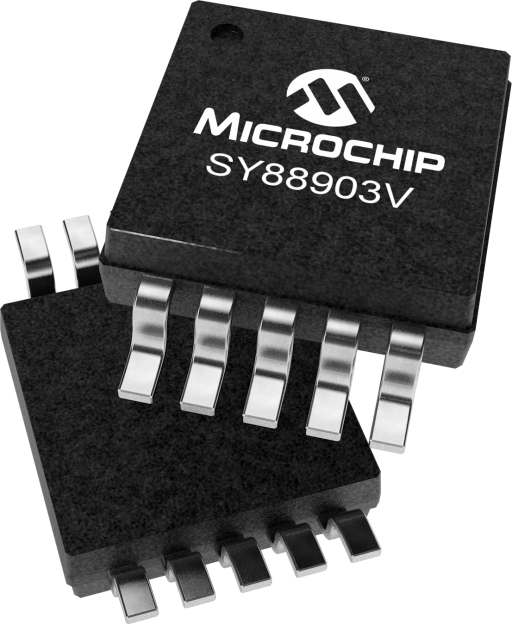

Microchip SY88903VKG

Manufacturer No:

SY88903VKG

Manufacturer:

Microchip

Package:

10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Description:

3.3V-5.0V 1.25Gbps PECL Post Amp

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY88903VKG information

Microchip SY88903VKG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY88903VKG.

Type
Parameter

Part Type
Continuous Mode

Power Supply (V)
3.3/5.0

Download datasheets and manufacturer documentation for Microchip SY88903VKG.

Data Sheets:

68b917997cd5354bce2a8c057a3b569a.pdf

The SY88903V limiting post amplifier with its high gain and wide bandwidth is ideal for use as a post amplifier in fiber-optic receivers with data rates up to 1.25Gb/s. Signals as small as 5mVp-p can be amplified to drive devices with PECL inputs. The SY88903V generates a chatter-free Loss of Signal (LOS) open collector TTL output.

The SY88903V incorporates a programmable level detect function to identify when the input signal has been lost. This information can be fed back to the /EN input of the device to maintain stability under loss of signal condition. The sensitivity of the level detection can be adjusted using LOSLVL. The LOSLVL voltage can be set by connecting a resistor divider between VCC and VREF as shown in Figure 3. Figure 4 and 5 show the relationship between input level sensitivity and the voltage set on LOSLVL.

The LOS output is a TTL open collector output that requires a pull-up resistor for proper operation.

3.3V and 5V power supply option
Up to 1.25Gb/s operation
Low noise
Chatter-Free LOS Generation
Open Collector TTL LOS Output
TTL /EN Input
Differential PECL inputs for data
Single power supply
Designed for use with (Micrel-High-Bandwidth laser diode driver and controller)
Available in a tiny 10-pin MSOP (3mm) package
